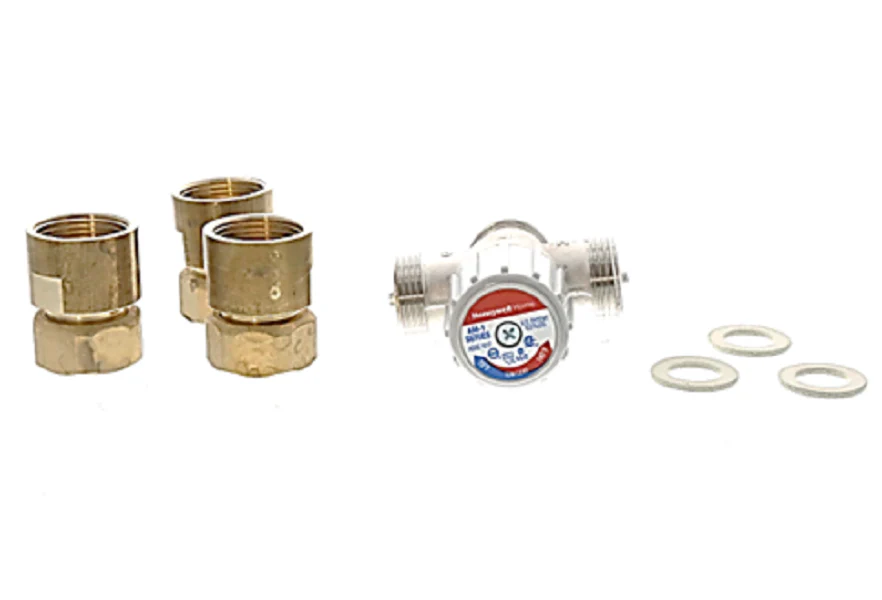

Resideo AM102-UT-1LF Valve
Professional-grade water temperature regulation requires high-performance hardware, and the Resideo AM102-UT-1LF is a benchmark for reliability in hydronic heating and potable water systems. This 1-inch lead-free thermostatic mixing valve features a robust 3.9 Cv capacity and a Union NPT connection designed for efficient field integration. Built with a nickel-plated brass body and internal EPDM O-rings, the unit utilizes a proportional valve design that simultaneously controls hot and cold flow. This ensures a consistent mixed outlet temperature, adjustable between 70°F and 145°F, even when supply conditions fluctuate. The internal surfaces are Teflon-coated to prevent mineral scale adhesion, effectively extending the service life of the mixing valve in hard water areas. Designed for applications ranging from radiant floor heating to large-scale domestic hot water loops, the AM102-UT-1LF meets ASSE 1017 standards for point-of-source distribution, providing the thermal stability required for modern high-efficiency mechanical rooms.
Key Benefits- Precise Thermal Control: Maintains a stable 70-145°F temperature range, critical for both anti-scald protection in domestic lines and precise loop temperatures in radiant systems.
- Field-Serviceable Design: The Union NPT fittings and straight-through body layout allow for rapid installation and simplified maintenance of the thermostatic element.
- Scale Resistance: Integrated Teflon coating on wear surfaces minimizes calcium and mineral build-up, reducing mechanical drag and preventing valve sticking.
- High Flow Efficiency: A 3.9 Cv rating supports high-demand applications with minimal pressure drop across the valve body.
What is the maximum operating pressure for the Resideo AM102-UT-1LF?
This valve is rated for a maximum safe operating pressure of 150 psi and can handle inlet temperatures up to 212°F.
Does this mixing valve require a specific installation orientation?
The AM-1 series features a straight-through design (hot and cold inlets at the same level), which simplifies piping; however, ensure the check valves—included on the inlets—are properly seated during union assembly.
Is the AM102-UT1-LF compliant with lead-free plumbing codes?
Yes, the "LF" designation indicates compliance with low-lead regulations, featuring a weighted average lead content of less than 0.25% on wetted surfaces.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
