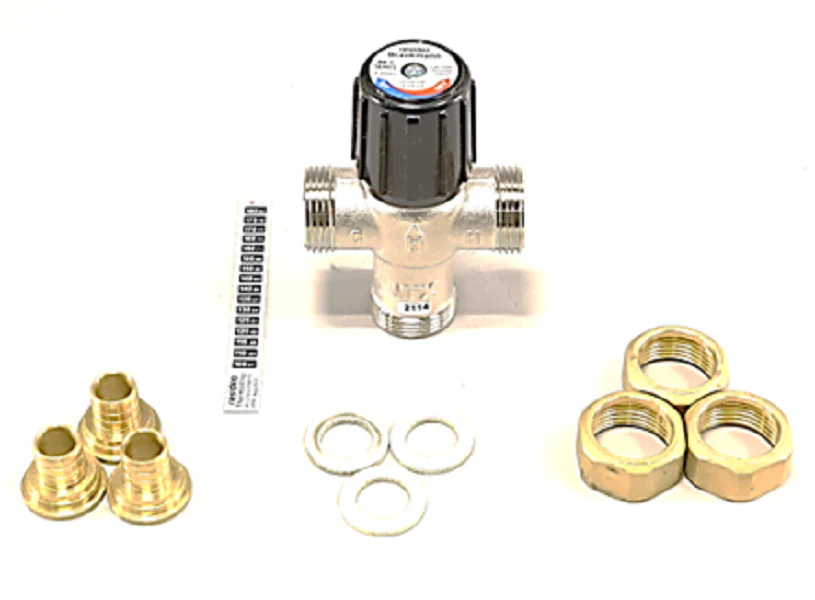

Resideo AM101R-UPEX-1 Valve
The Resideo AM101R-UPEX-1 Mixing Valve is a specialized 3/4 inch Union PEX thermostatic solution engineered for hydronic heating applications. Built with a nickel-plated brass body and Teflon-coated internal components, this valve is designed to resist mineral scale build-up, ensuring long-term seat integrity in demanding environments. It operates across a wide 70-180°F temperature range, providing precise proportional control for radiant floor heating, heat pump systems, and space heating loops. The straight-through design simplifies piping by keeping hot and cold inlets at the same level, while the 3.9 Cv capacity supports a 12 GPM flow rate at a 150 psi maximum working pressure. Installation is streamlined for contractors via the lockable handwheel and included thermostrip for rapid calibration. This "R" model is dedicated for heating-only applications, delivering consistent mixed water temperatures regardless of fluctuating inlet conditions while protecting system components from thermal stress.
Key Benefits- Corrosion Resistance: Nickel-plated brass construction and Teflon coating minimize calcification and prevent mechanical binding.
- Precision Control: Proportional valve design manages hot and cold water simultaneously to maintain a consistent mixed output.
- Contractor-Friendly Installation: The 3/4" Union PEX connections allow for quick fitment and easy disassembly for future maintenance.
- System Protection: The lockable handwheel prevents unauthorized temperature adjustments after the initial setpoint is established.
- High Flow Performance: Supports up to 12 GPM, making it suitable for larger radiant manifolds and combo-heating architectures.
Is the AM101R-UPEX-1 suitable for domestic potable water?
This specific 'R' model is designed and rated primarily for heating applications such as radiant floors and hydronic loops. For domestic point-of-source mixing, verify local code compliance regarding ASSE 1017 certifications.
What is the minimum flow required for the thermostat to react?
The valve requires a minimum flow rate of 0.5 GPM to ensure the thermostatic element accurately senses and adjusts the water temperature.
Can I install this valve in any orientation?
Yes, the AM-1 series is designed to be installed in any position that allows for future access to the handwheel and internal element for servicing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
