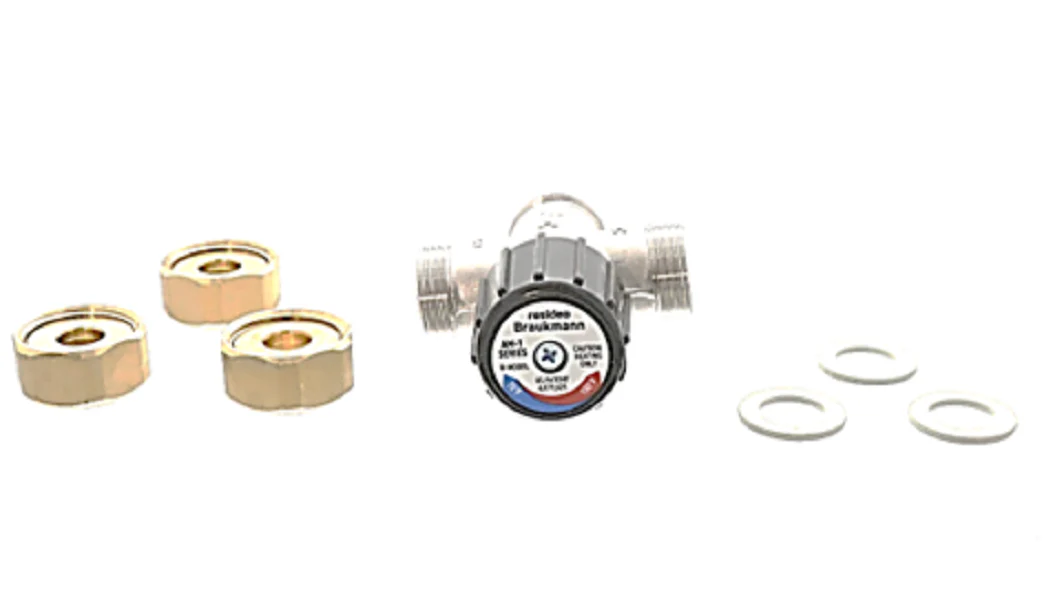

Resideo AM100R-US-1 Valve
Designed for hydronic professionals, the Resideo AM100R-US-1 is an AM-1 series thermostatic mixing valve engineered specifically for heating-only applications such as radiant floor heating and boiler systems. This 1/2" union sweat mixing valve delivers precise temperature control within a 70-180°F range, featuring a high-capacity 3.9 Cv rating to ensure optimal flow. Built for durability in demanding mechanical rooms, the valve utilizes nickel-plated brass construction and EPDM O-rings. A significant technical advantage is the Teflon-coated spool and body, which aggressively resists mineral buildup and scale to maintain peak performance. This proportional valve simultaneously adjusts hot and cold inputs to prevent thermal shock and maintain a constant water temperature even during fluctuating system pressures. The straight-through design simplifies piping layouts, while the lockable handwheel ensures that your calibrated setpoints remain tamper-resistant.
Key Benefits:- High Flow Capacity: Features a 3.9 Cv rating and a minimum flow requirement of only 0.5 GPM for versatile system integration.
- Advanced Scale Resistance: Teflon-coated internal components prevent binding and extend the service life of the thermostatic element.
- Precision Regulation: Maintains discharge temperatures within +/- 3°F (1.7°C) even under varying inlet conditions.
- Contractor-Friendly Installation: The union sweat connections and straight-through architecture reduce installation time and simplify maintenance.
- Maximum System Compatibility: Rated for pressures up to 150 psi and maximum inlet temperatures of 212°F.
Is the AM100R-US-1 suitable for domestic potable water?
No, the "R" model is designated as heating-only and is not intended for potable water applications. For domestic hot water, use the lead-free (LF) AM-1 series models.
Can this valve be used as a diverting valve?
Yes, the AM-1 series hardware is a dual-purpose proportional design that can be configured for either mixing or diverting applications in hydronic loops.
How do you adjust and lock the temperature setting?
Loosen the handwheel screw, lift the wheel to engage the adjustment mechanism, turn to your desired 70-180°F setpoint, then push the wheel down and retighten the screw to lock the setting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $116.02
-65%$116.02
$40.61Resideo AM100R-US-1 Valve
Designed for hydronic professionals, the Resideo AM100R-US-1 is an AM-1 series thermostatic mixing valve engineered specifically for heating-only applications such as radiant floor heating and boiler systems. This 1/2" union sweat mixing valve delivers precise temperature control within a 70-180°F range, featuring a high-capacity 3.9 Cv rating to ensure optimal flow. Built for durability in demanding mechanical rooms, the valve utilizes nickel-plated brass construction and EPDM O-rings. A significant technical advantage is the Teflon-coated spool and body, which aggressively resists mineral buildup and scale to maintain peak performance. This proportional valve simultaneously adjusts hot and cold inputs to prevent thermal shock and maintain a constant water temperature even during fluctuating system pressures. The straight-through design simplifies piping layouts, while the lockable handwheel ensures that your calibrated setpoints remain tamper-resistant.
Key Benefits:- High Flow Capacity: Features a 3.9 Cv rating and a minimum flow requirement of only 0.5 GPM for versatile system integration.
- Advanced Scale Resistance: Teflon-coated internal components prevent binding and extend the service life of the thermostatic element.
- Precision Regulation: Maintains discharge temperatures within +/- 3°F (1.7°C) even under varying inlet conditions.
- Contractor-Friendly Installation: The union sweat connections and straight-through architecture reduce installation time and simplify maintenance.
- Maximum System Compatibility: Rated for pressures up to 150 psi and maximum inlet temperatures of 212°F.
Is the AM100R-US-1 suitable for domestic potable water?
No, the "R" model is designated as heating-only and is not intended for potable water applications. For domestic hot water, use the lead-free (LF) AM-1 series models.
Can this valve be used as a diverting valve?
Yes, the AM-1 series hardware is a dual-purpose proportional design that can be configured for either mixing or diverting applications in hydronic loops.
How do you adjust and lock the temperature setting?
Loosen the handwheel screw, lift the wheel to engage the adjustment mechanism, turn to your desired 70-180°F setpoint, then push the wheel down and retighten the screw to lock the setting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
