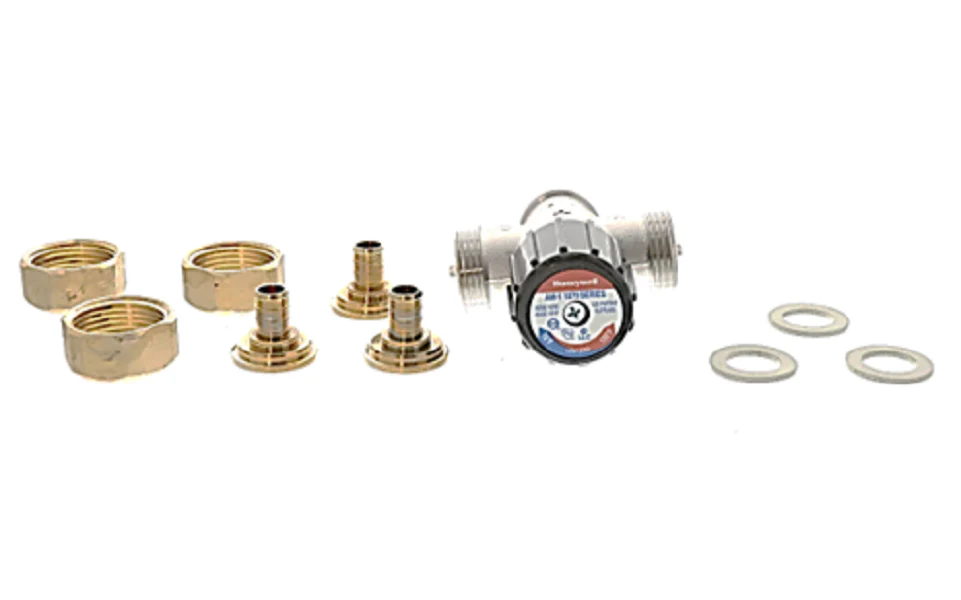

Resideo AM100C1070-UPEX1LF Valve
The Resideo AM100C1070-UPEX1LF Valve is a professional-grade thermostatic mixing valve designed for precise temperature control in domestic water applications. Featuring a 1/2 inch Union PEX connection, this lead-free mixing valve streamlines installation for contractors working with PEX tubing systems. The AM-1 series is engineered to prevent scalding by maintaining a stable mixed water temperature between 70-120°F, even when inlet pressures or temperatures fluctuate. Built with a Teflon-coated spool to resist mineral buildup, this ASSE 1017 certified valve ensures long-term reliability in varying water conditions. As a point-of-source mixing valve, it allows for higher water heater storage temperatures to kill Legionella bacteria while delivering safe, tempered water to the fixtures. This Resideo Honeywell Home component is the industry standard for meeting code requirements in residential and light commercial plumbing retrofits where scald protection and flow consistency are non-negotiable. It integrates a proportional valve design to balance hot and cold inputs for a maximum flow rate of 3.9 Cv.
Key Benefits- Lead-Free Brass Construction ensures compliance with safe drinking water regulations for all potable water installations.
- PEX Union Connections allow for fast, reliable plumbing hookups and easy removal for maintenance or cleaning.
- Wide Temperature Range of 70-120°F provides flexible settings for various residential comfort levels and energy efficiency.
- Teflon Spool Coating minimizes scale accumulation, significantly reducing the risk of valve sticking or mechanical failure.
- Dual-Purpose Design increases effective hot water capacity by allowing higher tank temperatures without risking user safety.
What is the maximum pressure rating for the AM100C1070-UPEX1LF?
This valve is rated for a maximum working pressure of 150 psi, making it suitable for standard municipal and well-pump water systems.
Does this valve require a check valve for installation?
The AM-1 series includes integrated check valves on both the hot and cold ports to prevent cross-flow between supply lines.
Can I use this mixing valve for a radiant heating application?
While primarily used for domestic water, the temperature range and flow characteristics allow it to function in small-scale radiant loops requiring tempered supply water.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
