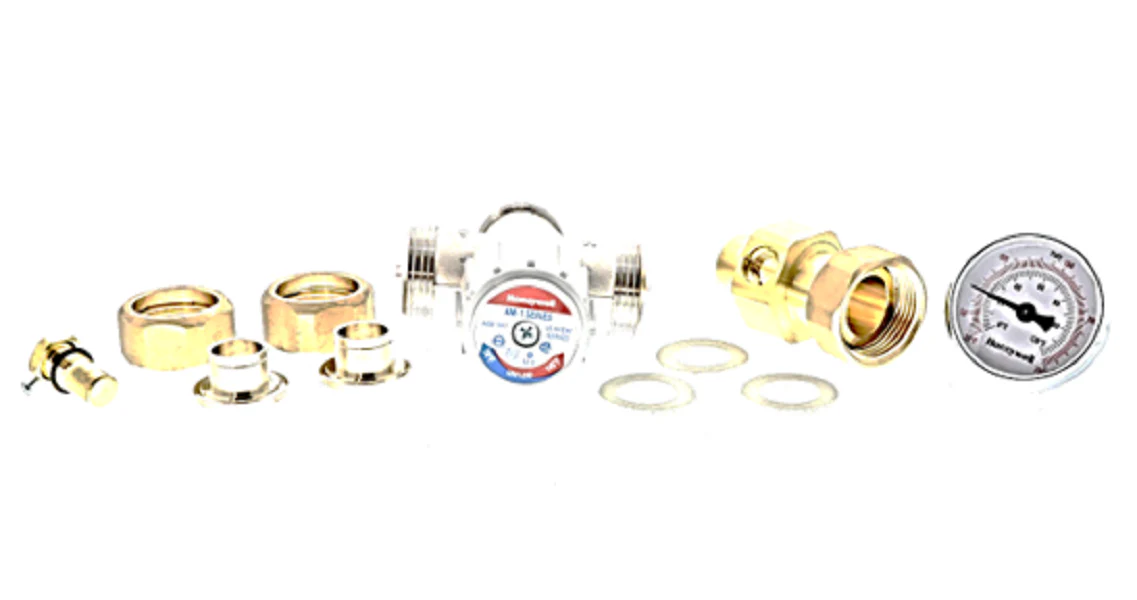

Resideo AM100-USTG-1LF Guage
The Resideo AM100-USTG-1LF is a critical component for contractors managing domestic water and hydronic heating systems. This 1/2 inch lead-free mixing valve features an integrated 2-inch union temperature gauge, providing technicians with immediate, real-time diagnostics of mixed outlet temperatures. Engineered for precision, it operates within a 70°F to 145°F temperature range and maintains a consistent 3.9 Cv capacity. The union sweat connection ensures a streamlined installation, while the nickel-plated brass construction and Teflon-coated internal components prevent mineral scale build-up, extending the service life of the assembly. Designed to meet ASSE 1017 standards, this proportional valve accurately balances hot and cold streams to prevent scalding and control Legionella bacteria growth by allowing higher water heater storage temperatures. Its straight-through design simplifies piping layouts, making it the professional choice for commercial and residential mechanical rooms.
Key Benefits- Enhanced System Monitoring: The integrated dial thermometer eliminates the need for external probes, allowing for rapid checkout and troubleshooting.
- Scald Protection: Engineered to provide fail-safe flow reduction within seconds if the cold water supply is interrupted.
- Durable Construction: Features a lead-free brass body with EPDM O-rings for compatibility with modern potable water regulations.
- Maintenance Optimized: The Teflon-coated shuttle resists calcium and lime deposits, ensuring smooth proportional control even in hard water areas.
What is the maximum operating pressure for this mixing valve?
The AM100-USTG-1LF is rated for a maximum pressure of 150 psi (1034 kPa), suitable for standard residential and light commercial applications.
Does this unit include check valves?
Yes, this model includes integrated check valves on both the hot and cold ports to prevent cross-flow and simplify the installation footprint.
How do I adjust the outlet temperature?
The valve utilizes a lockable handwheel design. Loosen the center screw, adjust the dial until the gauge reflects the desired setpoint, and retighten to secure the setting against tampering.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
