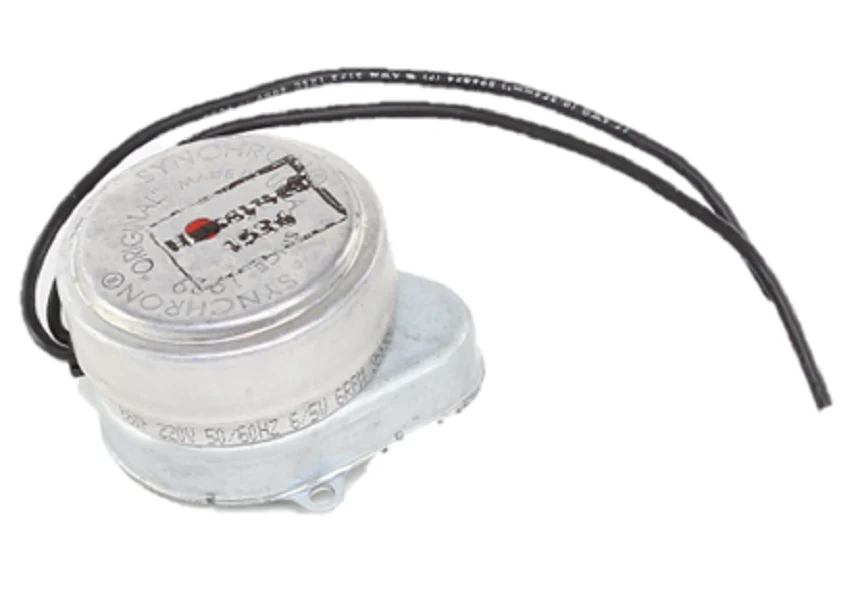

Resideo 802360NA Motor
When you are troubleshooting a failed zone valve, identifying the correct motor voltage and compatibility is the difference between a one-visit fix and a callback. The Resideo 802360NA motor is a purpose-built replacement part for high-voltage hydronic systems. This motor is engineered specifically for use with V4043 and V4044 series zone valves, providing the consistent torque required to actuate the valve paddle. Operating at 240 Vac and 60 Hz (as well as 220 Vac at 50 Hz), it delivers reliable performance in commercial and residential line-voltage applications. Each unit features 6-inch leadwires for direct integration into the existing powerhead wiring harness, and the kit includes the necessary mounting screw and solderless connectors for a clean, secure mechanical installation. By replacing just the motor, you restore full 2-position or diverting control without the labor of draining the system or cutting pipe.
Key Benefits for the Jobsite:- Application Compatibility: Specifically designed to match the electrical and mounting footprint of Honeywell Home V4043 and V4044 valves.
- High-Efficiency Performance: Drawing only 0.042A, this motor provides energy-efficient operation for hydronic heating and cooling systems.
- Streamlined Installation: Features the standard 240V replacement motor tab-and-slot design for quick alignment inside the powerhead housing.
- System Continuity: Allows for the repair of motorized valves without breaching the plumbing line, maintaining system pressure and chemical balance.
Does this motor work with 24V V8043 valves?
No. The 802360NA is a high-voltage 240 Vac motor and is not compatible with low-voltage 24V systems. For V8043 or V8044 series, you must use the appropriate 24V replacement motor.
Can I replace this motor without draining the system?
Yes. One of the primary advantages of this component is that it allows for the replacement of the resideo zone valve motor without removing the valve body or draining the hydronic loop.
What is the difference between this and the 120V version?
The 802360NA is rated for 240V/60Hz or 220V/50Hz. If your powerhead is wired to a 120V source, you must use the 802360LA model to avoid electrical damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $62.39
-65%$62.39
$21.84Resideo 802360NA Motor
When you are troubleshooting a failed zone valve, identifying the correct motor voltage and compatibility is the difference between a one-visit fix and a callback. The Resideo 802360NA motor is a purpose-built replacement part for high-voltage hydronic systems. This motor is engineered specifically for use with V4043 and V4044 series zone valves, providing the consistent torque required to actuate the valve paddle. Operating at 240 Vac and 60 Hz (as well as 220 Vac at 50 Hz), it delivers reliable performance in commercial and residential line-voltage applications. Each unit features 6-inch leadwires for direct integration into the existing powerhead wiring harness, and the kit includes the necessary mounting screw and solderless connectors for a clean, secure mechanical installation. By replacing just the motor, you restore full 2-position or diverting control without the labor of draining the system or cutting pipe.
Key Benefits for the Jobsite:- Application Compatibility: Specifically designed to match the electrical and mounting footprint of Honeywell Home V4043 and V4044 valves.
- High-Efficiency Performance: Drawing only 0.042A, this motor provides energy-efficient operation for hydronic heating and cooling systems.
- Streamlined Installation: Features the standard 240V replacement motor tab-and-slot design for quick alignment inside the powerhead housing.
- System Continuity: Allows for the repair of motorized valves without breaching the plumbing line, maintaining system pressure and chemical balance.
Does this motor work with 24V V8043 valves?
No. The 802360NA is a high-voltage 240 Vac motor and is not compatible with low-voltage 24V systems. For V8043 or V8044 series, you must use the appropriate 24V replacement motor.
Can I replace this motor without draining the system?
Yes. One of the primary advantages of this component is that it allows for the replacement of the resideo zone valve motor without removing the valve body or draining the hydronic loop.
What is the difference between this and the 120V version?
The 802360NA is rated for 240V/60Hz or 220V/50Hz. If your powerhead is wired to a 120V source, you must use the 802360LA model to avoid electrical damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
