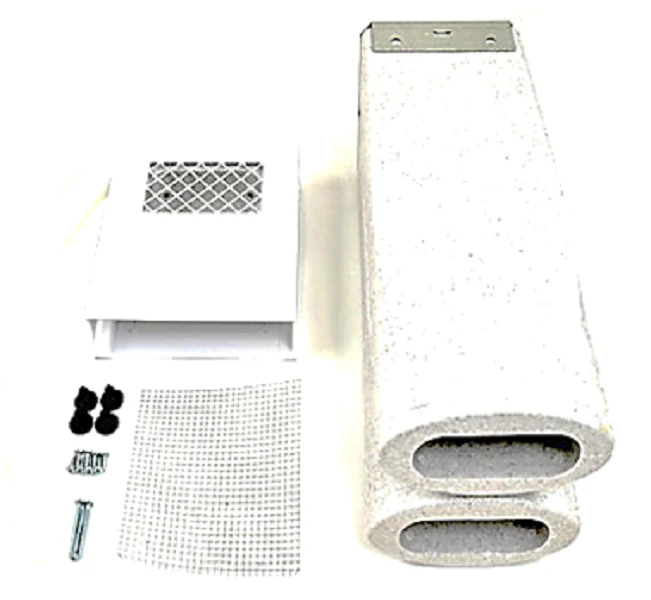

Resideo 50063805-009 Matrix Ventilation Hood
The Resideo 50063805-009 Matrix Ventilation Hood is a critical exterior component designed specifically for integration with the VNT5070 Series Heat Recovery Ventilators (HRV) and Energy Recovery Ventilators (ERV). This high-performance 2-in-1 ventilation hood streamlines installation by managing both intake and exhaust air through a single wall penetration, significantly reducing the labor and structural impact on the building envelope. Constructed for the rigors of field use, this dual-flow vent hood maintains a separate air path to prevent cross-contamination between the incoming fresh air and the outgoing stale air, ensuring your indoor air quality (IAQ) remains uncompromised.
As a veteran tech knows, proper airflow management is non-negotiable for system efficiency. The 50063805-009 features a low-profile design that minimizes static pressure drop, allowing the VNT5070 system to operate at its calibrated CFM without undue strain. This HVAC intake and exhaust hood is engineered for 6-inch insulated flexible ducting, utilizing a robust transition plate that simplifies the connection process in the field while maintaining a tight thermal seal to prevent condensation and energy loss at the penetration point.
Key Benefits
- Optimized Compatibility: Engineered specifically as the OEM VNT5070 ventilation hood for seamless mechanical fit.
- Dual-Function Design: Combines supply and exhaust into a single matrix ventilation hood, requiring only one 8-1/8" x 7-1/8" exterior wall cutout.
- Contamination Control: Internal flow separation prevents the short-circuiting of exhaust air back into the intake stream.
- Installation Efficiency: Simplifies the footprint on the exterior wall, reducing the risk of water intrusion and improving the aesthetic of the building envelope.
- Technical Resilience: Durable construction resists environmental wear, maintaining structural integrity in varied climates.
Common Questions
Can the 50063805-009 be used with other HRV/ERV models?
This hood is specifically designed for the Resideo VNT5070 Series. Using it with higher-airflow models may result in excessive static pressure and reduced recovery efficiency.
What are the minimum clearance requirements for installation?
For peak performance, maintain a minimum of 18 inches above grade and at least 6 feet from pollutant sources such as gas meters, dryer vents, or garbage bins to prevent intake of contaminants.
Does this unit require separate intake and exhaust holes?
No, the matrix hood design allows both 6-inch supply and exhaust ducts to terminate at the same exterior point while keeping air streams physically isolated.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
