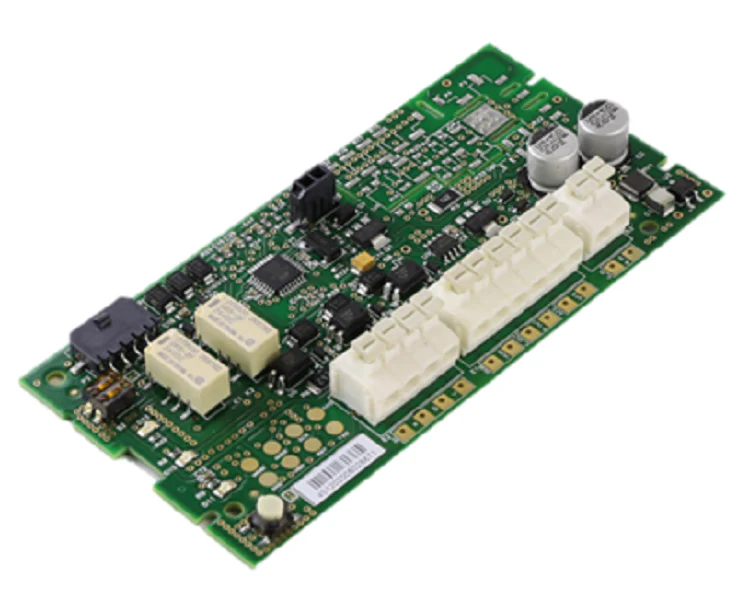

Resideo 50057547-003 Circuit Board
The Resideo 50057547-003 Circuit Board is the direct OEM replacement control module for the HE250 TrueEASE Large Advanced Bypass Humidifier. As the central processing logic for the humidification system, this board manages the solenoid valve timing, fan interlocks, and sensor feedback to ensure precise indoor air quality management. Designed for HVAC contractors, it facilitates seamless system troubleshooting and restores the advanced diagnostic capabilities inherent to the TrueEASE platform. This humidifier control board is engineered to withstand the thermal cycling of a forced-air furnace environment, providing reliable switching for HE250A1005 and HE250C1014 models. By maintaining the correct evaporative humidifier cycles, it prevents moisture carryover and ensures high-efficiency operation. For technicians, this board is the definitive replacement part to resolve communication errors or power delivery issues to the humidifier motor and water control components.
Key Benefits
- OEM Compatibility: Specifically engineered for HE250 series TrueEASE bypass humidifiers, ensuring perfect electrical and mechanical fit.
- Precision Logic: Regulates solenoid valve activation to optimize water usage and prevent unnecessary drainage.
- Enhanced Durability: Robust solid-state architecture designed for HVAC technical environments and high-duty cycles.
- Diagnostic accuracy: Restores full functionality to specialized TrueEASE humidity control features and system alerts.
Common Questions
What are the symptoms of a failing HE250 control board?
Technicians typically observe the humidifier failing to activate during a call for humidity, solenoid valves remaining stuck open or closed, or a lack of power at the 24V terminals despite verified input voltage.
Is this board compatible with the HE150 or HE300 models?
No, this specific Resideo circuit board is calibrated for the HE250 humidifier logic. Using it with different series may result in incorrect cycle times or system faults.
Does this board require special programming during installation?
It is a plug-and-play OEM replacement. Ensure all humidistat and sensor leads are reconnected to the identical terminal designations on the new board.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
