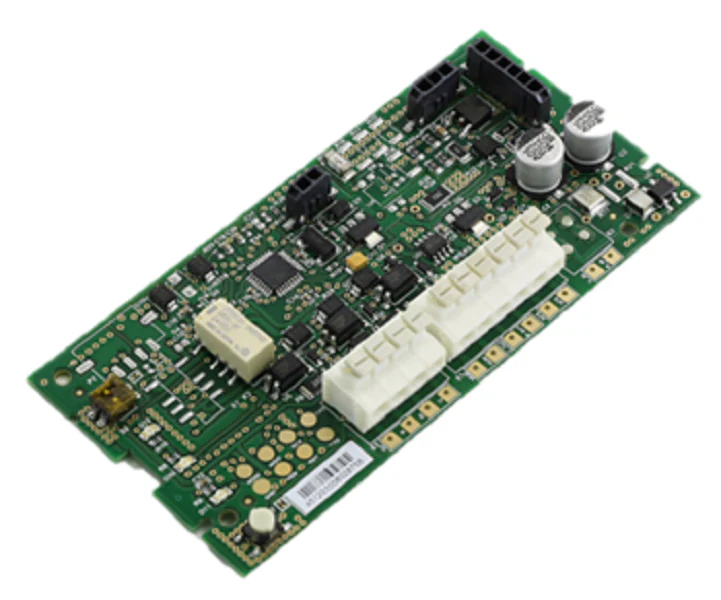

Resideo 50057547-001 Circuit Board
The Resideo 50057547-001 Circuit Board is the dedicated control center for the HE300 TrueEASE Fan Humidifier. Designed for precise integration, this 24V replacement control board manages critical system functions, including blower motor activation, solenoid valve sequencing, and humidity level maintenance. As a direct-fit HVAC replacement part, it eliminates the need for field modifications, ensuring a standard plug-and-play installation for technicians. The board features a built-in diagnostic LED system that allows for rapid troubleshooting in the field by providing real-time status updates on the TrueEASE humidifier operation. This component is essential for maintaining house-wide airflow and humidity regulation within high-efficiency residential HVAC systems. By accurately processing environmental data from the humidistat, the 1.27-ounce board ensures the HE300 fan-powered humidifier operates at peak performance, maximizing water efficiency and operational noise reduction for the homeowner.
Key Benefits- Direct OEM Replacement: Engineering-matched for the Resideo HE300A1005, ensuring full electrical and physical compatibility.
- Enhanced Diagnostics: Integrated logic allows for quick fault detection of the solenoid or fan motor, reducing service time.
- System Efficiency: Regulates the 24V circuit with precision to maintain consistent humidity levels without premature cycling.
- Rugged Construction: Built to withstand the fluctuating temperature and moisture levels found in the return air plenum.
Is the 50057547-001 compatible with the HE150 or HE250 bypass models?
No, this specific board is configured for the HE300 fan-powered model. Bypass models utilize the 50057547-002 or 50057547-003 boards respectively.
Does this board control the water solenoid?
Yes, the board manages the DC solenoid valve timing to ensure water flows only when the fan is energized and the humidistat calls for humidity.
What should I check if the humidifier fan fails to turn on?
Verify the 24V power supply at the board terminals and inspect the onboard diagnostic LED for error codes related to the fan relay or pressure switch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $70.84
-65%$70.84
$24.79Resideo 50057547-001 Circuit Board
The Resideo 50057547-001 Circuit Board is the dedicated control center for the HE300 TrueEASE Fan Humidifier. Designed for precise integration, this 24V replacement control board manages critical system functions, including blower motor activation, solenoid valve sequencing, and humidity level maintenance. As a direct-fit HVAC replacement part, it eliminates the need for field modifications, ensuring a standard plug-and-play installation for technicians. The board features a built-in diagnostic LED system that allows for rapid troubleshooting in the field by providing real-time status updates on the TrueEASE humidifier operation. This component is essential for maintaining house-wide airflow and humidity regulation within high-efficiency residential HVAC systems. By accurately processing environmental data from the humidistat, the 1.27-ounce board ensures the HE300 fan-powered humidifier operates at peak performance, maximizing water efficiency and operational noise reduction for the homeowner.
Key Benefits- Direct OEM Replacement: Engineering-matched for the Resideo HE300A1005, ensuring full electrical and physical compatibility.
- Enhanced Diagnostics: Integrated logic allows for quick fault detection of the solenoid or fan motor, reducing service time.
- System Efficiency: Regulates the 24V circuit with precision to maintain consistent humidity levels without premature cycling.
- Rugged Construction: Built to withstand the fluctuating temperature and moisture levels found in the return air plenum.
Is the 50057547-001 compatible with the HE150 or HE250 bypass models?
No, this specific board is configured for the HE300 fan-powered model. Bypass models utilize the 50057547-002 or 50057547-003 boards respectively.
Does this board control the water solenoid?
Yes, the board manages the DC solenoid valve timing to ensure water flows only when the fan is energized and the humidistat calls for humidity.
What should I check if the humidifier fan fails to turn on?
Verify the 24V power supply at the board terminals and inspect the onboard diagnostic LED for error codes related to the fan relay or pressure switch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
