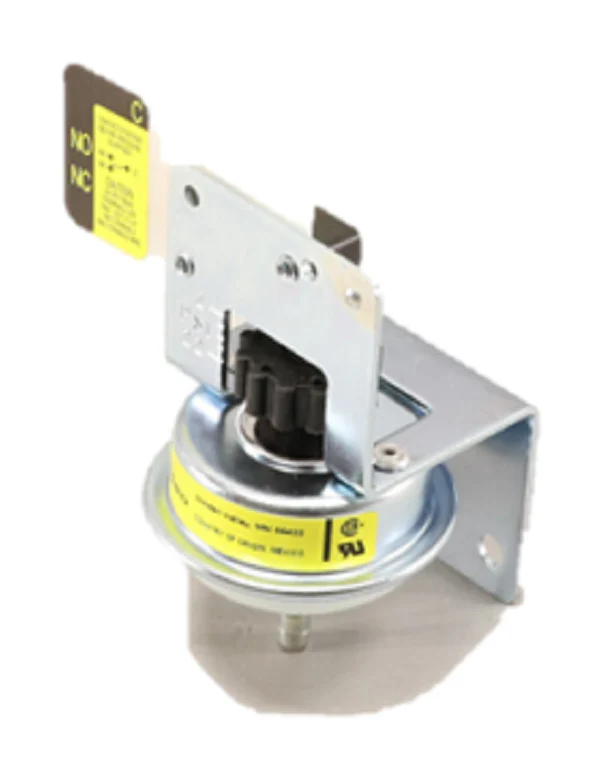

Resideo 3033 Pressure Switch
The Resideo 3033 Pressure Switch is an industrial-grade SPDT air pressure switch designed for critical monitoring in HVAC and pneumatic conveying systems. Engineered with a versatile 2-22# pressure range, this component provides field-adjustable setpoints to handle varied static pressure and airflow proving tasks. The 3/16" barbed connection ensures a secure fit for standard sensing tubing, while the Single Pole Double Throw configuration allows for flexible electrical integration, supporting both normally open and normally closed circuit logic. This G50B style airswitch is built with a rugged metal housing and cover, accommodating up to 1 HP at 120 VAC, making it a reliable choice for HVAC pressure control and fan proving applications. Whether managing draft inducer verification or monitoring for blocked filters, the 3033 delivers consistent switching performance in ambient temperatures up to 190°F.
Key Benefits- Precise Pressure Regulation: Features a wide 2 to 22 psi adjustable range for fine-tuning airflow sensitivity in complex industrial environments.
- Industrial Durability: Housed in a robust metal box to protect internal components from demanding mechanical room conditions.
- System Compatibility: The 3/16-inch barbed fitting and SPDT contacts allow for seamless replacement in legacy Honeywell 3033 and modern Resideo installations.
- High Electrical Capacity: Capable of handling significant pilot duty and motor loads, rated up to 1/2 HP at 120V and 1 HP at 240V.
Is the 3033 switch automatic or manual reset?
This model is designed for automatic reset operation, making it ideal for continuous monitoring applications where the circuit should restore once normal pressure conditions are detected.
What media can the Resideo 3033 sense?
The internal silicone diaphragm is specifically designed for sensing air and non-combustible gases. It should not be used with liquids or corrosive chemical vapors.
How do I adjust the setpoint on this pressure switch?
The setpoint is adjusted via the internal adjustment screw; turning it modifies the spring tension to reach the desired actuation point within the 2-22 psig range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $105.26
-65%$105.26
$36.84Resideo 3033 Pressure Switch
The Resideo 3033 Pressure Switch is an industrial-grade SPDT air pressure switch designed for critical monitoring in HVAC and pneumatic conveying systems. Engineered with a versatile 2-22# pressure range, this component provides field-adjustable setpoints to handle varied static pressure and airflow proving tasks. The 3/16" barbed connection ensures a secure fit for standard sensing tubing, while the Single Pole Double Throw configuration allows for flexible electrical integration, supporting both normally open and normally closed circuit logic. This G50B style airswitch is built with a rugged metal housing and cover, accommodating up to 1 HP at 120 VAC, making it a reliable choice for HVAC pressure control and fan proving applications. Whether managing draft inducer verification or monitoring for blocked filters, the 3033 delivers consistent switching performance in ambient temperatures up to 190°F.
Key Benefits- Precise Pressure Regulation: Features a wide 2 to 22 psi adjustable range for fine-tuning airflow sensitivity in complex industrial environments.
- Industrial Durability: Housed in a robust metal box to protect internal components from demanding mechanical room conditions.
- System Compatibility: The 3/16-inch barbed fitting and SPDT contacts allow for seamless replacement in legacy Honeywell 3033 and modern Resideo installations.
- High Electrical Capacity: Capable of handling significant pilot duty and motor loads, rated up to 1/2 HP at 120V and 1 HP at 240V.
Is the 3033 switch automatic or manual reset?
This model is designed for automatic reset operation, making it ideal for continuous monitoring applications where the circuit should restore once normal pressure conditions are detected.
What media can the Resideo 3033 sense?
The internal silicone diaphragm is specifically designed for sensing air and non-combustible gases. It should not be used with liquids or corrosive chemical vapors.
How do I adjust the setpoint on this pressure switch?
The setpoint is adjusted via the internal adjustment screw; turning it modifies the spring tension to reach the desired actuation point within the 2-22 psig range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
