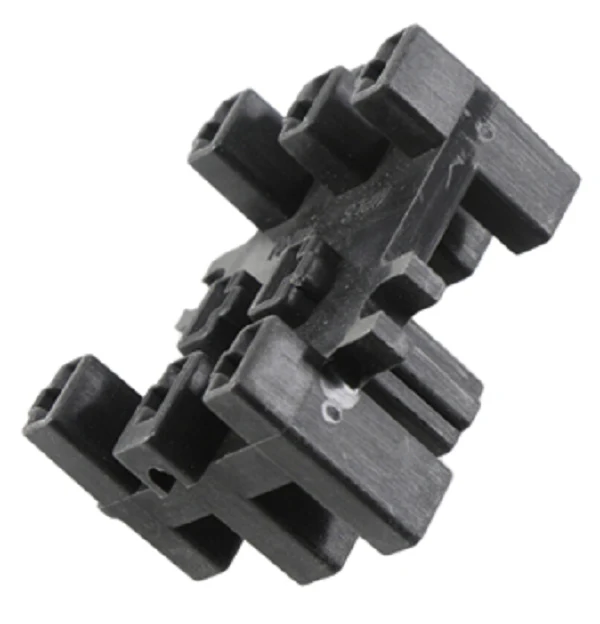

Resideo 135959 Relay Receptacle
When you're out in the field servicing multi-stage HVAC equipment or heavy-duty refrigeration systems, the Resideo 135959 Relay Receptacle is the professional standard for housing R4228 and R8228 series relays. This rugged plug-in relay base is engineered to provide a secure, low-resistance electrical connection, preventing the common high-heat failures associated with poor terminal contact. As an HVAC relay socket designed for performance, it simplifies the mounting process for heavy-duty general-purpose relays, allowing for rapid component swaps during critical downtime.
The 135959 receptacle features molded terminal numbering to match your HVAC wiring diagrams, ensuring accuracy when integrating into low-voltage (24 Vac) R8228 systems or line-voltage (120-480 Vac) R4228 applications. This Honeywell Home replacement part is built for the high-duty cycles of vending machines, appliances, and commercial air conditioning equipment where reliability isn't optional. It provides a stable mounting base for R4228 power relays, ensuring your control circuit maintained mechanical integrity even in high-vibration environments.
Key Benefits for Technicians:- Compatible with industry-standard R4228 and R8228 heavy-duty relays for seamless integration.
- Features molded terminal identifications to reduce wiring errors during field installation.
- Engineered for secure plug-in connectivity, preventing arc-related terminal damage.
- Constructed with high-grade materials to withstand the thermal demands of general-purpose switching.
- Optimizes serviceability by allowing quick relay replacement without rewiring the entire terminal block.
Is the 135959 receptacle compatible with low-voltage and line-voltage coils?
Yes, this receptacle is universal for the series; the voltage rating is determined by the specific R4228 (line voltage) or R8228 (low voltage) relay you plug into the base.
Does this part include the leadwires for installation?
This specific model is the receptacle only; ensure you have the appropriate terminal connectors or leadwire assemblies ready for your specific cabinet configuration.
Can I use this for pilot duty applications?
The 135959 is specifically designed for the power-rated contacts found in the R4228 and R8228 series, making it ideal for high-amp inductive and resistive loads.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
