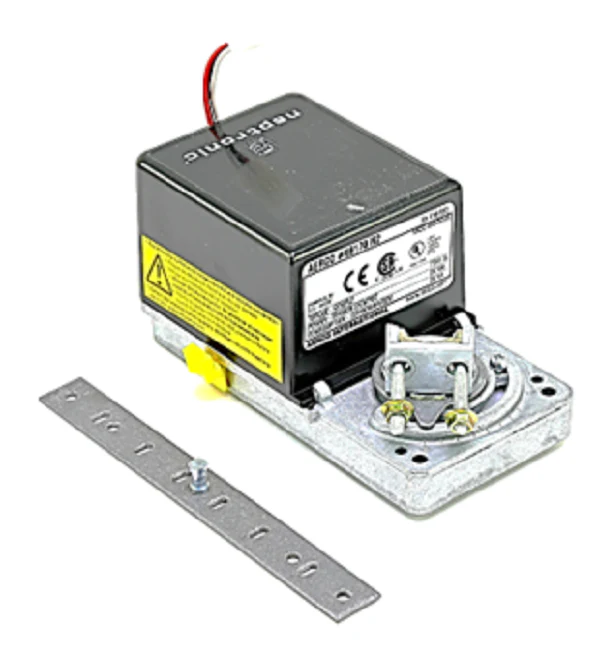

Neptronic SM060AE2 Actuator
The Neptronic SM060AE2 is a robust, high-torque damper actuator engineered for precise control in demanding HVAC systems. Delivering 90 in-lb (10 Nm) of torque, this non-spring return unit provides a reliable 3-point floating control signal or 2-wire on/off control for air dampers and valves. Operating on 24VAC or 24VDC (specifically rated for 28/32VDC applications), it serves as the direct replacement for the obsolete 69009 model, ensuring seamless integration into existing control loops without extensive retrofitting. The unit features external clutch access for manual overrides and an adjustable mechanical stroke, allowing for specialized positioning in complex air handling units. Its heavy-duty construction is designed to withstand the cyclic stress of commercial environments while maintaining signal accuracy. For technicians upgrading legacy systems, the SM060AE2 offers a simplified terminal block layout and a compact footprint, making it the industry standard for damper motor replacement and commercial HVAC automation.
Key Benefits for Contractors
- Universal Compatibility: Serves as the precise direct replacement for 69009, eliminating the need for mounting bracket modifications.
- Optimized Torque: Provides a consistent 90 in-lb torque output suitable for medium to large control dampers and VAV box applications.
- Field Flexibility: Features a manual override button and adjustable mechanical end stops to limit rotation based on specific damper requirements.
- Direct Mount Installation: The simplified u-bolt mounting system allows for quick attachment to round or square shafts.
Frequently Asked Questions
Is the SM060AE2 compatible with 24V DC power?
Yes, this actuator is rated for 24VDC operations, specifically handling the 28/32VDC range common in specific industrial and military-grade HVAC control circuits.
Can I use this to replace a 69009 actuator?
The SM060AE2 is the designated 69009 replacement. It maintains the same control logic and mounting footprint but utilizes updated internal brushless motor technology for improved longevity.
Does this unit support proportional 0-10VDC control?
The SM060AE2 is designed for floating or on/off control. If your system requires a modulating 2-10VDC or 4-20mA signal, check the Neptronic SM-series datasheet for the 'M' suffix models.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
