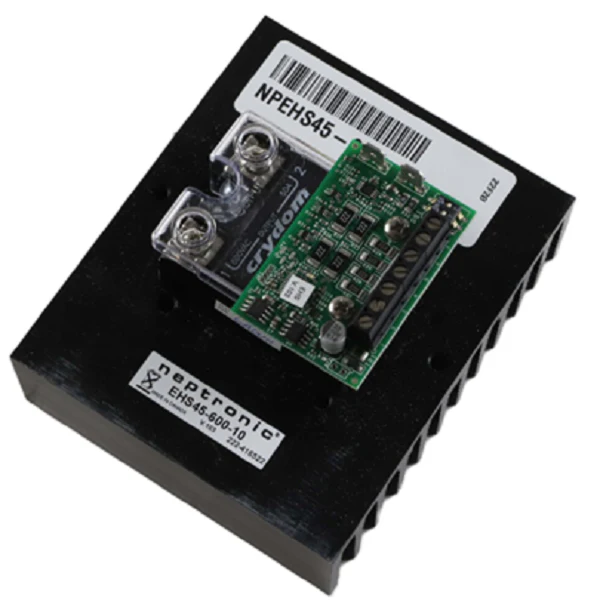

Neptronic EHS45-600-10 Controller
The Neptronic EHS45-600-10 is a specialized single phase SCR power controller designed for high-capacity modulating heat control in commercial HVACR and industrial process heating. Built with a microprocessor-based architecture, this unit supports a maximum load of 45 Amps at 600V, utilizing zero voltage cross firing to minimize electromagnetic interference and line noise. This switching method ensures clean power delivery to resistive loads, extending the lifespan of heating elements. The hardware includes a factory-installed aluminum heat sink for optimized thermal dissipation, allowing for a wide operating temperature range up to 80°C (176°F). Field versatility is a core strength, as the controller accepts a comprehensive range of input signals including 0-10 VDC, 4-20 mA, and pulse signals (AC/DC). This allows for seamless integration with BMS controllers and thermostats for precise temperature regulation in duct heaters, reheat coils, and environmental chambers.
Key Technical Benefits
- Multi-Signal Compatibility: Supports analog (VDC, mA) and digital (pulse, stage) inputs for flexible field configuration.
- Advanced Thermal Management: Integrated high-efficiency heat sink maintains SSR stability under continuous 45A loads.
- Diagnostic Feedback: Features an onboard LED pulse indicator for real-time visual troubleshooting of the control loop.
- Microprocessor Precision: Ensures linear power output and stable control logic across varying humidity and temperature conditions.
- Industrial Build Quality: Features UL, CSA, and CE approved components for compliance in regulated mechanical rooms.
Common Technical Questions
What is the primary advantage of zero voltage cross firing in this model?
Zero voltage cross firing triggers the SCR only when the AC voltage passes through zero, which significantly reduces RFI and electrical noise compared to phase-angle firing, making it ideal for environments with sensitive electronics.
Can the EHS45-600-10 handle inductive loads?
This controller is specifically engineered for resistive heating loads. Using this for inductive loads like motors or transformers is not recommended and may lead to component failure.
Is an external power supply required for the control circuit?
Yes, the unit requires a 22-26 VAC (50/60 Hz) power source for the control logic, consuming approximately 2 VA of power during operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
