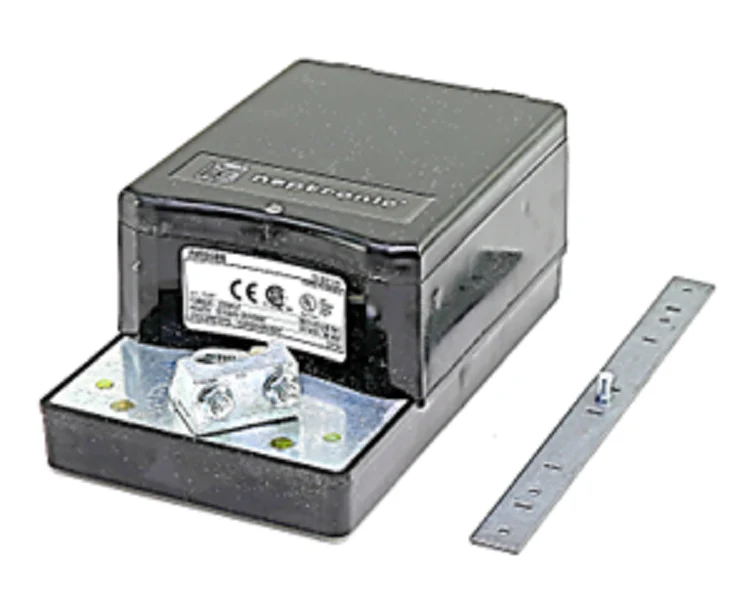

Neptronic RM060N Actuator
The Neptronic RM060N Actuator is a high-torque industrial motor designed for precise control of oversized dampers and large-scale valve assemblies. This 24V non-spring return actuator delivers a robust 360 in-lb torque, making it a reliable choice for heavy-duty HVAC applications requiring consistent mechanical force. Featuring a rapid 40-50 second stall time, it ensures high-speed response to control signals. The integration of active feedback signals allows for real-time position monitoring within the building automation system, ensuring accurate synchronization and load management. Built with a rugged NEMA 2 enclosure, this unit is engineered for longevity in demanding environments where vibration and mechanical stress are factors. For contractors managing large damper 0-10VDC control or floating point modulation, the RM060N provides a versatile interface. Its direct-mount design simplifies field installation on standard shaft diameters, reducing labor time while maintaining the high integrity of the electronic fail-safe sequences required in advanced air handling units.
Key Benefits for Technicians
- High Torque Output: Delivers 360 in-lb (40 Nm) to handle large damper surfaces and high-pressure drops.
- Precise Feedback: Integrated 2-10VDC or 4-20mA position feedback for exact system monitoring.
- Fast Cycle Time: 40 to 50-second run time provides rapid adjustment for critical airflow management.
- Universal Compatibility: Supports 24VAC/VDC power inputs and multiple control signals including On/Off and Floating.
- Manual Override: External clutch button allows for easy manual positioning during commissioning or system testing.
Common Installation Questions
What is the maximum shaft size for the Neptronic RM060N?
The RM060N is designed to mount directly onto round shafts up to 1 inch (25.4mm) or square shafts up to 3/4 inch (19mm) using its universal clamp assembly.
Can this actuator be used in tandem for higher torque requirements?
Yes, these units can be configured for master-slave operation to drive larger damper banks that exceed the capacity of a single 360 in-lb motor.
Is the rotation direction reversible in the field?
The direction of rotation is easily selectable via an internal dip switch or by changing the control signal wiring, depending on your specific damper linkage configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
