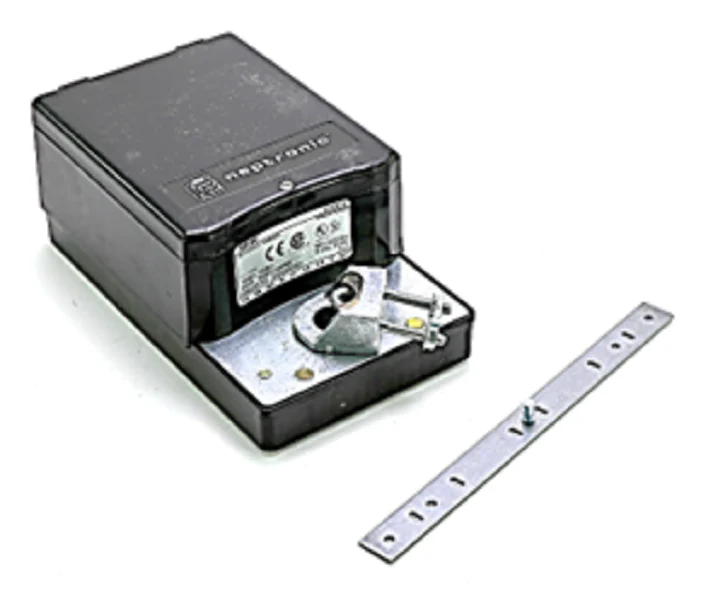

Neptronic RM060 Actuator
The Neptronic RM060 Actuator is a high-torque rotary actuator designed for precise control in heavy-duty HVAC applications. Delivering 600 in-lb (70 Nm) of torque, this unit is engineered to manage large dampers and valves where reliable force is mandatory. It features the patented Enerdrive System, providing a dependable fail-safe return without the mechanical failure points of traditional springs. This electronic spring return ensures consistent closing force and eliminates the risk of linkage binding during power loss. Operating on a 24Vac/Vdc power supply, the RM060 supports 2nd point/floating or modulating (2-10Vdc) control signals, making it adaptable to complex building automation systems. The rugged IP54-rated housing and industrial-grade gear train are built for high-duty cycles, ensuring long-term positioning accuracy and minimal hysteresis in demanding mechanical rooms.
Key Benefits:- High Torque Output: Provides 600 in-lb of force to handle oversized dampers and high-static pressure systems.
- Enerdrive System: Advanced electronic spring return technology ensures fail-safe positioning without mechanical spring fatigue.
- Flexible Control: Field-selectable control signals including 0-10 Vdc, 2-10 Vdc, and floating options for seamless BMS integration.
- Direct Mount Installation: Features a universal shaft clamp for quick attachment to standard damper shafts without specialized linkages.
- Adjustable Stroke: Mechanical end stops allow for precise limit adjustments to match specific equipment requirements.
Can the Neptronic RM060 be used for both clockwise and counter-clockwise fail-safe?
Yes, the direction of the Enerdrive fail-safe return is switch-selectable on the circuit board, allowing for field configuration to either normally open or normally closed positions.
What is the typical runtime for a full 90-degree rotation?
The RM060 typically achieves full rotation in 90 to 110 seconds, depending on the specific load and control signal configuration.
Is this actuator compatible with legacy 24V floating controllers?
Yes, the unit supports three-point floating control, making it an ideal drop-in replacement for older HVAC actuators in retrofit applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
