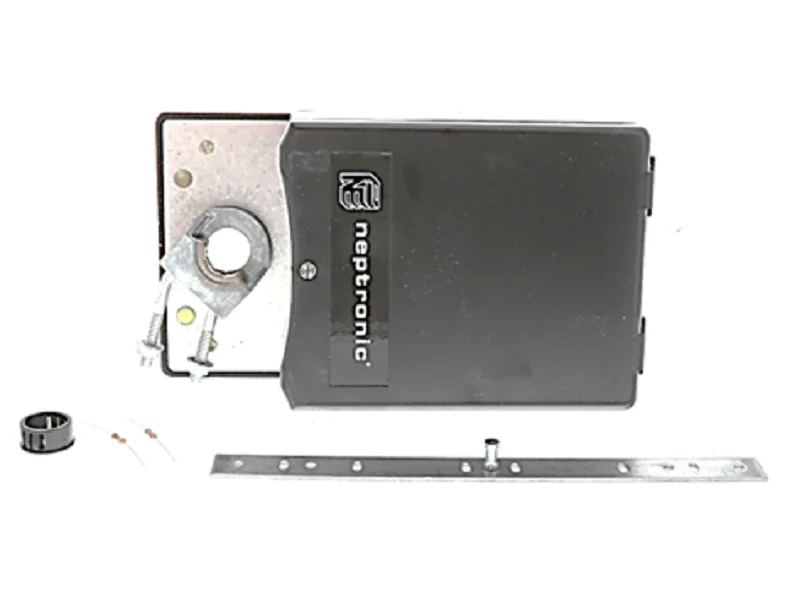

Neptronic RM000FN Actuator

As a veteran HVACR technician, you know that heavy-duty air handlers and large-scale ventilation dampers require significant torque and reliable control. The Neptronic RM000FN Actuator delivers a robust 240 in-lb torque output, making it a professional choice for high-load applications where standard motors fall short. This 24V proportional actuator is engineered for precision, utilizing a brushless DC motor to ensure consistent travel and long-term durability in industrial environments. With its non-spring return design and NEMA 2 enclosure, the RM000FN provides reliable positioning for dampers ranging from VAV boxes to complex multi-blade units, offering on/off, floating, and modulating control signals to match any building automation system. The programmable control input and 15 to 20 second run time allow for rapid adjustments without sacrificing the accuracy of your HVAC automation sequence.

Key Benefits:

• High Torque Capacity: Delivers 240 in-lb (27 Nm) to handle larger damper areas and higher static pressures without stalling.
• Universal Compatibility: Supports multiple control signals including 2-10 VDC, 4-20 mA, and PWM for seamless integration with varied controllers.
• Field Professional Features: Equipped with a clutch for manual adjustments and a clear position indicator for simplified commissioning.
• Fast Response: Features a high-speed runtime of 15 to 20 seconds through 90°, reducing lag in time-sensitive climate control loops.
• Self-Correcting Calibration: Includes an auto-stroke process that automatically detects mechanical limits, preventing over-torque alarms and motor strain.

Common Questions:

• Can the RM000FN be programmed for custom control signals? Yes, the unit is fully programmable. Using the onboard dip switches and reset button, technicians can calibrate the zero and span for custom modulating control ranges outside the factory defaults.
• Is a separate transformer required for this actuator? It is strongly recommended to wire Neptronic actuators to a dedicated transformer to prevent electrical interference and potential damage from incompatible equipment on the same circuit.
• Does this model feature a fail-safe (Enerdrive) system? No, the RM000FN is a non-spring return, non-fail-safe model. If you require the Enerdrive fail-safe feature, you should specify the RM060 or RM080 series.
