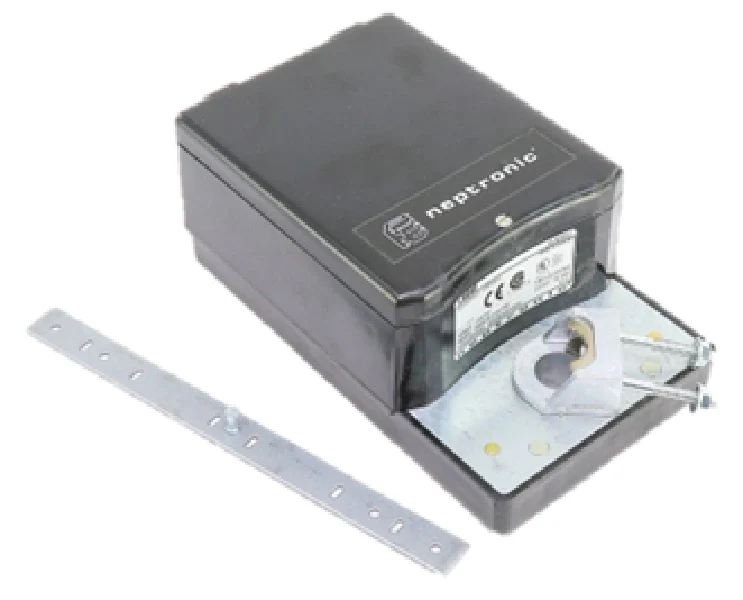

Neptronic LM060 Actuator
The Neptronic LM060 Actuator is a heavy-duty, brush-motor solution engineered for the precise modulation and control of HVAC dampers and valves. Providing a robust 140 in.lb. (16 Nm) torque capacity, this unit is designed to handle high-demand commercial and industrial applications where reliable fail-safe operation is non-negotiable. It supports a versatile power input of 24VAC/28-32VDC and utilizes a contactless feedback positioner to eliminate mechanical wear, ensuring consistent accuracy over the life of the component. The LM060 is highly adaptable, featuring field-selectable control signals including 2-10 Vdc, 4-20 mA, On/Off, and Floating. With a running time of 60-85 seconds and a NEMA Type 2 (IP22) rated enclosure, this actuator integrates seamlessly into advanced building automation systems (BAS) and air handling units. Its universal mounting design accommodates both round and square shafts, making it a standard choice for field replacements and new installations alike.
Key Benefits for HVAC Contractors
- Fail-Safe Reliability: Automatically returns to the safety position during power loss to protect system integrity.
- Universal Control Compatibility: Field-selectable 2-10Vdc or 4-20mA signals for easy integration with various controllers.
- Brushless-Like Precision: Advanced microprocessor control provides smooth operation without the maintenance overhead of traditional mechanical switches.
- Manual Override: Equipped with a manual clutch and position indicator for easy commissioning and emergency positioning.
- Durable Construction: Rated for temperatures ranging from -22°F to +122°F, suitable for demanding mechanical room environments.
Common Questions
What is the default control signal for the Neptronic LM060?
The unit is factory-set to a 2-10 Vdc signal but can be field-configured for 4-20 mA or 24 Vac on/off and floating control depending on your specific sequence of operations.
Can I adjust the rotation angle on this actuator?
Yes, the angle of rotation is mechanically adjustable between 0° and 90° to match the specific stroke requirements of your damper or valve hardware.
Does the LM060 require a specific shaft size?
The flexible mounting clamp is designed to secure onto both round and square shafts, providing a universal fit for most standard HVAC damper linkages.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
