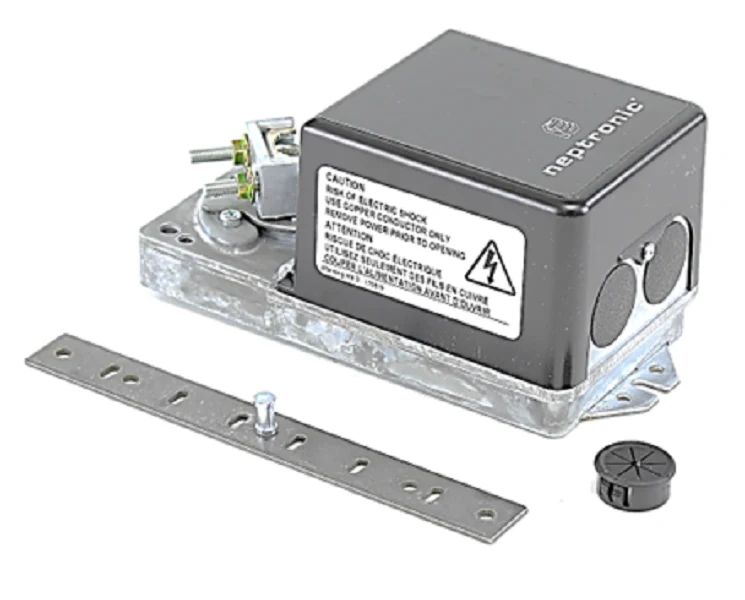

Neptronic BT100 Actuator
The Neptronic BT100 Actuator is a 120VAC 2-position actuator designed for reliable control in commercial HVAC systems. Delivering 50 in-lb torque, this direct-coupled actuator is engineered for on/off control of dampers and valves using a 3-wire control signal. It features a rugged NEMA 2 enclosure and a manual override lever to facilitate field commissioning and emergency operation. The internal synchronous motor ensures consistent timing and prevent stalls, making it a dependable choice for 120V damper actuators requiring high duty cycles. This Neptronic BT series unit provides a 90-degree rotation and is compatible with standard HVAC control systems. Whether you are replacing a legacy drive or installing a new 120V motor kit, the BT100 offers the mechanical force necessary to maintain precise airflow within restrictive ductwork.
Key Benefits
- 50 in-lb Output: High torque capacity ensures reliable operation of medium-sized dampers and shut-off valves.
- 120VAC Power Input: Standard line voltage compatibility eliminates the need for external step-down transformers in specific control circuits.
- Manual Override: Integrated clutch button allowing technicians to manually position the actuator without power.
- Fast Installation: Universal mounting bracket and direct-drive coupling reduce labor time during retrofits.
- Endurance Testing: Built with high-grade internal gearing for high-frequency cycling in demanding commercial environments.
Common Questions
Can the Neptronic BT100 be used for modulating control?
No, this model is a 2-position/3-wire actuator designed specifically for on/off applications. For 0-10VDC or 4-20mA modulation, a different model in the BT series would be required.
What is the fail-safe position for this actuator?
The BT100 is a non-spring return actuator. It will remain in its last position upon loss of power unless manually adjusted using the override lever.
Is this actuator suitable for outdoor installation?
The unit features a NEMA 2 rating, which protects against falling dirt and light water dripping. For full weather exposure, a separate protective NEMA 4 enclosure is recommended.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
