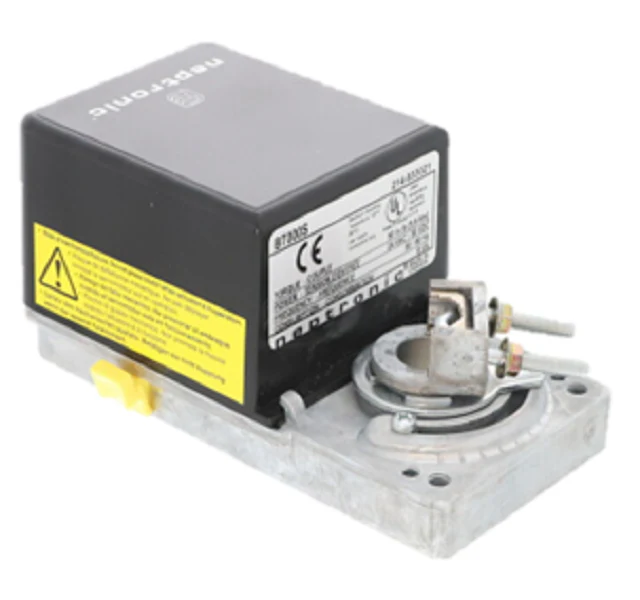

Neptronic BT000S Actuator
The Neptronic BT000S Actuator is a field-proven, non-spring return damper actuator designed for reliable control in HVAC systems including VAV boxes, fan coils, and unit ventilators. Operating on a 24V AC/DC power supply, this B Series actuator delivers a consistent torque of 50 in-lb (5.6 Nm), providing sufficient force for managing small to medium-sized dampers and 1/4 turn valves. The unit features on/off and floating control inputs, with a dipswitch-selectable running time that ranges from 90-110 seconds for standard operation or a high-speed 30-second mode for applications requiring faster response times.
For technical precision, the BT000S incorporates a contactless feedback positioner and an external clutch for manual overrides during commissioning. The direct-coupled mounting design fits both round and square shafts, simplifying installation for contractors. To maintain signal integrity and prevent equipment interference, it is recommended to use a dedicated Class 2 transformer. This electric actuator is housed in an IP22 (NEMA Type 2) enclosure, ensuring electronic overload protection through the full 0° to 90° mechanical stroke.
Key Benefits:
- Selectable Performance: Dual-speed functionality allows technicians to toggle between 30 and 110-second runtimes via internal dipswitches.
- Universal Mounting: Direct-mount "U" bolt design accommodates various shaft profiles with no additional linkage required.
- Electronic Protection: Features electronic overload sensing to prevent motor burnout at stroke limits without end switches.
- Contractor Friendly: Maintenance-free operation with a visible position indicator for rapid status verification.
Common Questions:
- Is this actuator fail-safe? No, the BT000S is a non-spring return model; it maintains its last position upon loss of power. For fail-safe requirements, consider the Enerdrive-equipped models in the Neptronic line.
- Can this be used for modulating signals? This specific model is designed for 3-point floating or on/off control. It does not accept 0-10VDC or 4-20mA analog signals.
- Does it include a feedback potentiometer? The standard BT000S does not include feedback, though the FD5-B 5000 Ohm potentiometer can be added as an optional field-installed accessory.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
BT000S is the cross for BT000
