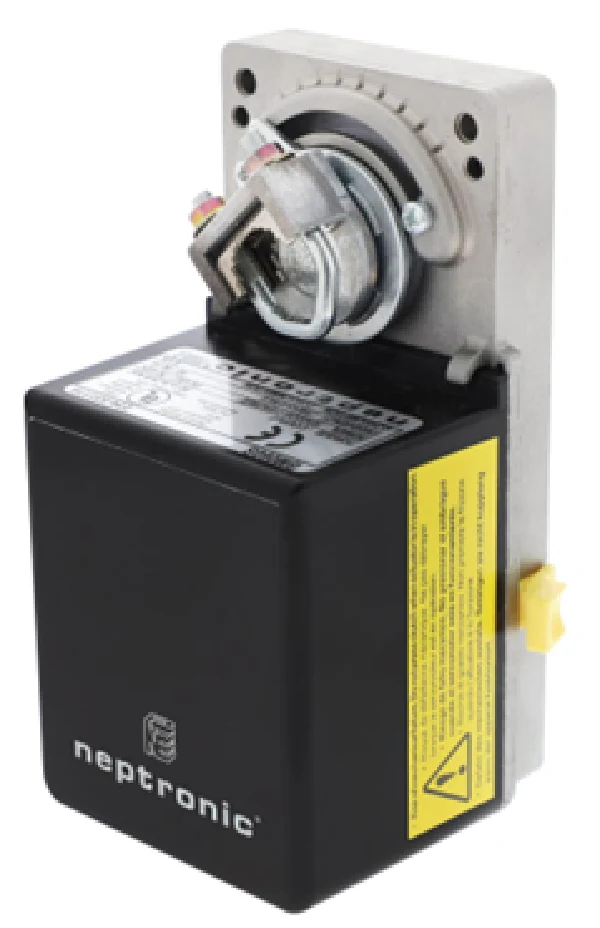

Neptronic BM060S Actuator
The Neptronic BM060S Actuator is a professional-grade, low-voltage solution engineered for precise modulating control in VAV box control and fan coil unit applications. Operating on 24VAC or 30VDC power supply, this actuator provides a reliable 50 in-lb torque output suitable for small dampers and unit ventilators. It features the patented Enerdrive fail-safe system, utilizing high-energy capacitors to provide electronic fail-safe operation in the event of power loss, ensuring the damper returns to its safety position without the mechanical fatigue of traditional springs. The modulating control signal is field-selectable for 2-10VDC or 4-20mA (with a 500 ohm resistor), offering seamless integration with various building automation systems. Built for durability, the unit includes an IP22 NEMA 2 enclosure, a manual clutch for emergency overrides, and a contactless feedback positioner to maintain accuracy over 100,000 full cycles. The dual-speed dipswitch allows for runtime selection of 30 or 90-110 seconds, providing versatility for specific HVACR mounting requirements on round or square shafts.
Key Benefits
- Enerdrive Fail-Safe Technology: Provides a robust electronic return without the need for mechanical springs, increasing long-term reliability.
- Versatile Control Logic: Supports 2-10VDC and 4-20mA signals, making it a universal choice for modern HVACR controls.
- Maintenance-Free Design: Features an ISO 9001:2015 certified brushless motor and overload protection across the full 90-degree rotation.
- Easy Installation: The auto-stroke adjustment and universal "U" bolt clamp simplify field commissioning on various shaft sizes.
Common Questions
How do I configure the Neptronic BM060S for a 4-20mA signal?
To utilize a 4-20mA input signal, you must install a 500-ohm resistor across the designated control terminals and adjust the internal dipswitches as specified in the Neptronic actuator wiring diagram.
Can the fail-safe direction be reversed?
Yes, the fail-safe return direction is field-reversible via dipswitch 3, allowing you to select either a clockwise or counter-clockwise safety position upon power failure.
What is the purpose of the Enerdrive capacitor system?
Unlike traditional batteries or springs, the Enerdrive system uses capacitors to store energy during normal operation, ensuring the modulating actuator has enough power to close or open during a power outage without requiring external battery maintenance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
BM060S is the cross for BM060
Neptronic BM060S Actuator
The Neptronic BM060S Actuator is a professional-grade, low-voltage solution engineered for precise modulating control in VAV box control and fan coil unit applications. Operating on 24VAC or 30VDC power supply, this actuator provides a reliable 50 in-lb torque output suitable for small dampers and unit ventilators. It features the patented Enerdrive fail-safe system, utilizing high-energy capacitors to provide electronic fail-safe operation in the event of power loss, ensuring the damper returns to its safety position without the mechanical fatigue of traditional springs. The modulating control signal is field-selectable for 2-10VDC or 4-20mA (with a 500 ohm resistor), offering seamless integration with various building automation systems. Built for durability, the unit includes an IP22 NEMA 2 enclosure, a manual clutch for emergency overrides, and a contactless feedback positioner to maintain accuracy over 100,000 full cycles. The dual-speed dipswitch allows for runtime selection of 30 or 90-110 seconds, providing versatility for specific HVACR mounting requirements on round or square shafts.
Key Benefits
- Enerdrive Fail-Safe Technology: Provides a robust electronic return without the need for mechanical springs, increasing long-term reliability.
- Versatile Control Logic: Supports 2-10VDC and 4-20mA signals, making it a universal choice for modern HVACR controls.
- Maintenance-Free Design: Features an ISO 9001:2015 certified brushless motor and overload protection across the full 90-degree rotation.
- Easy Installation: The auto-stroke adjustment and universal "U" bolt clamp simplify field commissioning on various shaft sizes.
Common Questions
How do I configure the Neptronic BM060S for a 4-20mA signal?
To utilize a 4-20mA input signal, you must install a 500-ohm resistor across the designated control terminals and adjust the internal dipswitches as specified in the Neptronic actuator wiring diagram.
Can the fail-safe direction be reversed?
Yes, the fail-safe return direction is field-reversible via dipswitch 3, allowing you to select either a clockwise or counter-clockwise safety position upon power failure.
What is the purpose of the Enerdrive capacitor system?
Unlike traditional batteries or springs, the Enerdrive system uses capacitors to store energy during normal operation, ensuring the modulating actuator has enough power to close or open during a power outage without requiring external battery maintenance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
BM060S is the cross for BM060
