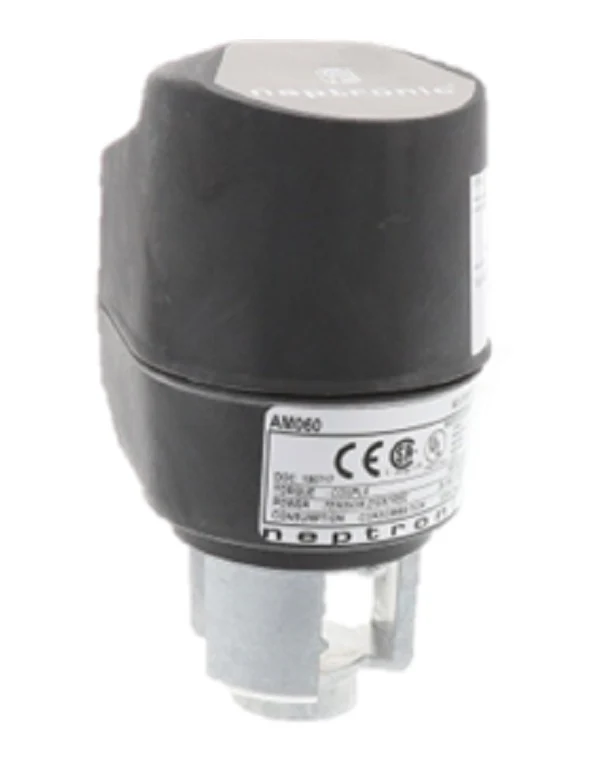

Neptronic AM060 Actuator
The Neptronic AM060 Actuator is a heavy-duty 24V electronic fail-safe valve actuator engineered for precise modulation in commercial and industrial HVACR systems. Delivering a robust 100 lb force (450 N) thrust, this linear actuator is built for reliable positioning of globe valves, including those in steam injection and hydronic applications. It features Enerdrive patented fail-safe technology, which provides a modern electronic alternative to traditional spring returns, ensuring the valve returns to its safety position (up or down) during a power loss without the mechanical failure points of physical springs.
This universal control input actuator simplifies field installations by accepting 2-10VDC or 4-20mA analog signals, and is also field-programmable for PWM (Pulse Width Modulation), floating, and on/off control. Professional technicians benefit from the electronic stroke adjustment and zero/span calibration, allowing for exact commissioning even in complex retrofits. Designed for maintenance-free operation, the AM060 includes a manual override and is compatible with a wide range of valve bodies via standardized linkage assemblies.
Key Benefits for the Contractor:- Precise Control Integration: Seamlessly matches building automation systems using 4-20mA or 2-10VDC modulation.
- Enerdrive Fail-Safe System: Provides reliable electronic return safety, protecting system components during power interruptions.
- High Torque Performance: Supplies 100 lb of force to handle demanding valve configurations and ensure tight shut-off.
- Field Flexibility: Features PWM programmable inputs and reversible rotation directions for universal application compatibility.
- Easy Commissioning: Built-in manual override and status LEDs allow for rapid setup and troubleshooting without specialty tools.
What is the maximum stroke length for this model?
The Neptronic AM060 supports a maximum stroke of 1 inch (25.4 mm), which is electronically adjustable to match the specific valve requirements.
How does the Enerdrive system differ from standard spring returns?
Unlike mechanical spring returns that can weaken over time, the Enerdrive system uses high-efficiency electronic circuitry to power the actuator to its safety position, providing more consistent force and longevity.
Can I use this for both steam and water applications?
Yes, when paired with the appropriate globe valve body, the AM060 is frequently used for both hydronic control and steam injection systems, provided the ambient temperature stays between 0°F and 122°F.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
