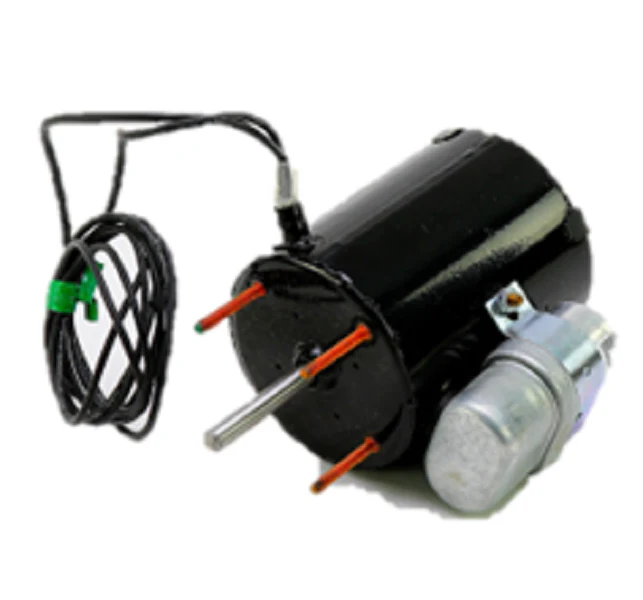

Modine 9F0302050000 Motor
The Modine 9F0302050000 Motor is a high-performance 208/230V 1Ph Inducer Motor specifically engineered for precision airflow in power-vented heating systems. As a critical component for maintaining proper combustion and flue gas exhaustion, this 1/10 HP inducer motor delivers a consistent 3000 RPM, ensuring that pressure switches close reliably to initiate the heating cycle. Designed with a robust 3.3-inch diameter frame and a 5/16-inch x 2-1/8-inch shaft, it provides a direct-fit solution for Modine unit heater repair, minimizing downtime for field technicians. The motor features a 0.80 Amp draw and 60Hz frequency compatibility, housed in a durable 4-inch case with 4-stud mounting (2-5/8-inch spacing) for high-vibration residential and commercial environments. By prioritizing OEM replacement motor standards, this unit maintains the original system’s static pressure requirements and operational safety limits without requiring extensive modification during installation.
Key Benefits
- High-Speed Performance: Operates at 3000 RPM to ensure consistent vacuum pressure and reliable heater ignition.
- Precise Specifications: Features a 5/16" x 2-1/8" shaft and 0.80 Amp draw for exact electrical and mechanical compatibility.
- Contractor-Grade Durability: Engineered for 208-230V single-phase electrical systems commonly found in industrial unit heaters.
- Simplified Integration: Includes 36-inch wire leads and standard 4-stud mounting for efficient field replacement.
Common Questions
What are the signs that a Modine inducer motor needs replacement?
Technicians should look for a "1 flash" code on the control board, indicating the pressure switch isn't closing. Physical signs include excessive bearing noise, a seized internal fan, or the motor receiving 230V without spinning.
Is this motor compatible with 115V Modine heaters?
No, the 9F0302050000 is strictly rated for 208/230V 1-Phase power. Using this on a 115V circuit will result in failure to start and potential component damage.
Does this include the blower wheel or just the motor?
This SKU refers to the inducer motor itself. While it includes the mounting studs and leads, technicians should inspect the existing blower wheel for cracks or debris before reattaching it to the new 5/16-inch shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
