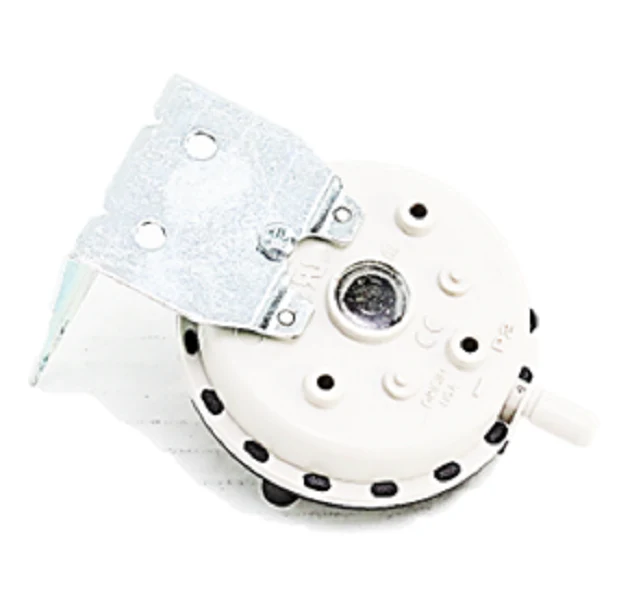

Modine 5H0780340001 Pressure Switch
For veteran HVAC technicians and service contractors, the Modine 5H0780340001 Pressure Switch is the essential OEM replacement part for maintaining proper drafting and combustion safety in low-intensity infrared heaters. This Vacuum Pressure Switch - TLP is engineered to monitor differential pressure within the vent system, ensuring the inducer fan is moving sufficient air to clear spent combustion gases before ignition. If the switch detects a drop in vacuum pressure below the factory-calibrated setpoint, it breaks the 24V circuit to the gas valve, preventing hazardous operation or carbon monoxide buildup. Built with a high-durability housing and precise SPST electrical contacts, this unit heater safety switch is the direct replacement for the Modine TLP series and select Modine Hot Dawg models. Integrating this OEM HVAC pressure switch ensures field compatibility without the need for mounting modifications or bracket fabrication. Rely on this Modine replacement part for consistent performance and reliable trial-for-ignition sequences in demanding commercial and industrial heating applications.
Key Benefits
- Matches OEM specifications for exact fit and function in Modine TLP series heaters.
- Ensures critical combustion safety by verifying proper vacuum pressure before the heating cycle begins.
- Features high-quality diaphragm construction to minimize nuisance tripping and flutter during startup.
- Designed for high-temperature resilience in the vicinity of unit heater burner boxes.
- Provides easy terminal identification for rapid field replacement and reduced labor time.
Common Questions
How do I troubleshoot a pressure switch on a Modine heater?
Confirm your vent pipe and terminal cap are free of obstructions and that the inducer motor is reaching full RPM. Check the vacuum tubing for cracks or moisture. If the multimeter shows no continuity across the SPST contacts while under vacuum, the internal diaphragm or contacts may have failed.
Can I use an adjustable universal pressure switch instead?
For UL-listed safety compliance and peak performance, it is recommended to use the OEM Modine 5H0780340001 with its factory-calibrated setpoint rather than a generic or adjustable alternative.
What does it mean if my switch is stuck open?
A "stuck open" vacuum pressure switch usually indicates that the ignition controller is receiving a signal for pressure when the fan is off, or it won't close when the fan starts. This usually prevents the hot surface igniter or spark from energizing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
