Modine 5H0716080002 Pressure Switch

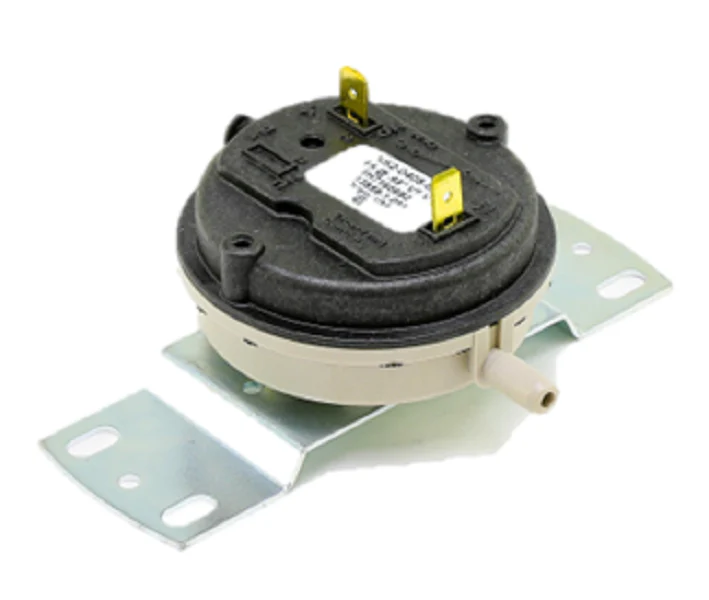

The Modine 5H0716080002 Pressure Switch is a critical safety and operational component designed for high-performance unit heater systems and industrial HVAC applications. This precision-engineered switch functions as an inductive draft safety control, ensuring the power exhauster is generating sufficient static pressure before allowing the ignition sequence to proceed. By monitoring the pressure differential within the combustion chamber or venting system, this OEM Modine replacement part prevents hazardous conditions such as the accumulation of unburned flue gases or back-drafting.
Constructed with a durable diaphragm and robust electrical contacts, the 5H0716080002 pressure switch is calibrated for specific actuation points to maintain system efficiency and protect the heat exchanger from premature wear. Transitioning to this factory-spec component resolves common furnace pressure switch failure symptoms, including inducer motor cycling without ignition, repetitive short-cycling, and HVAC fault codes (often indicated by a flashing green LED on the control board). This switch is compatible with a wide range of Modine gas-fired equipment where reliable pressure regulation and air-proving are required for continuous operation in demanding environments.
Key Benefits- Enhanced System Safety: Actively monitors air pressure to permit fuel delivery only when proper venting is confirmed, mitigating carbon monoxide risks.
- Precise Actuation: Factory-calibrated setpoints ensure consistent performance and prevent "nuisance tripping" caused by minor pressure fluctuations.
- Durable Infrastructure: Heavy-duty housing and high-quality internal components are built to withstand the thermal and mechanical stresses of industrial heating.
- Direct OEM Integration: Designed specifically for Modine equipment to ensure seamless electrical and mechanical compatibility without field modifications.
What causes a pressure switch fault code on a Modine heater?
While the switch itself may fail due to a ruptured diaphragm or pitted contacts, faults are often triggered by external factors like a blocked flue, sagging vent pipe, cracked silicone tubing, or a failing inducer motor that cannot pull sufficient vacuum.
Can I adjust the pressure range on this switch?
While some technicians attempt field adjustments, it is recommended to verify the specific requirements of your Modine unit. This switch is typically pre-set to factory specifications to ensure the unit operates within its AHRI-certified safety parameters.
How do I test if the 5H0716080002 is functioning correctly?
A veteran technician will typically use a manometer to measure the actual draft pressure and a multimeter to check for continuity across the switch terminals once the inducer motor reaches full speed. Contacts should close once the setpoint is reached.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $122.32
-65%$122.32
$42.81Modine 5H0716080002 Pressure Switch
The Modine 5H0716080002 Pressure Switch is a critical safety and operational component designed for high-performance unit heater systems and industrial HVAC applications. This precision-engineered switch functions as an inductive draft safety control, ensuring the power exhauster is generating sufficient static pressure before allowing the ignition sequence to proceed. By monitoring the pressure differential within the combustion chamber or venting system, this OEM Modine replacement part prevents hazardous conditions such as the accumulation of unburned flue gases or back-drafting.
Constructed with a durable diaphragm and robust electrical contacts, the 5H0716080002 pressure switch is calibrated for specific actuation points to maintain system efficiency and protect the heat exchanger from premature wear. Transitioning to this factory-spec component resolves common furnace pressure switch failure symptoms, including inducer motor cycling without ignition, repetitive short-cycling, and HVAC fault codes (often indicated by a flashing green LED on the control board). This switch is compatible with a wide range of Modine gas-fired equipment where reliable pressure regulation and air-proving are required for continuous operation in demanding environments.
Key Benefits- Enhanced System Safety: Actively monitors air pressure to permit fuel delivery only when proper venting is confirmed, mitigating carbon monoxide risks.
- Precise Actuation: Factory-calibrated setpoints ensure consistent performance and prevent "nuisance tripping" caused by minor pressure fluctuations.
- Durable Infrastructure: Heavy-duty housing and high-quality internal components are built to withstand the thermal and mechanical stresses of industrial heating.
- Direct OEM Integration: Designed specifically for Modine equipment to ensure seamless electrical and mechanical compatibility without field modifications.
What causes a pressure switch fault code on a Modine heater?
While the switch itself may fail due to a ruptured diaphragm or pitted contacts, faults are often triggered by external factors like a blocked flue, sagging vent pipe, cracked silicone tubing, or a failing inducer motor that cannot pull sufficient vacuum.
Can I adjust the pressure range on this switch?
While some technicians attempt field adjustments, it is recommended to verify the specific requirements of your Modine unit. This switch is typically pre-set to factory specifications to ensure the unit operates within its AHRI-certified safety parameters.
How do I test if the 5H0716080002 is functioning correctly?
A veteran technician will typically use a manometer to measure the actual draft pressure and a multimeter to check for continuity across the switch terminals once the inducer motor reaches full speed. Contacts should close once the setpoint is reached.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
