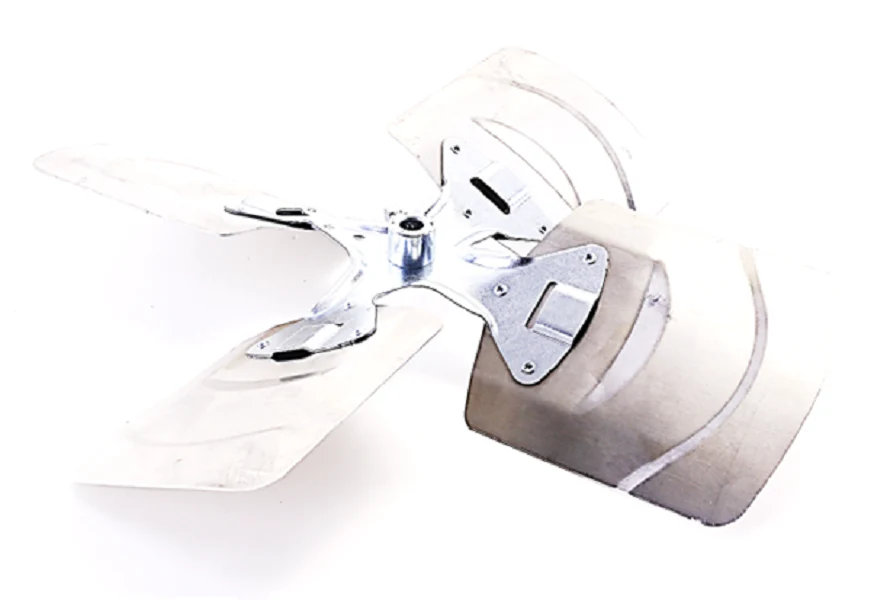

Modine 5H0630390004 Fan Blade
The Modine 5H0630390004 Fan Blade is a critical combustion and air-side component designed specifically for integration with Modine Hot Dawg HD and HDS model unit heaters, as well as several Btu/hr rated power-vented gas-fired heaters. This precision-engineered blade is designed to balance aerodynamic efficiency with the static pressure requirements of the blower assembly. Fabricated from heavy-duty aluminum to resist corrosion and thermal fatigue, this replacement fan blade ensures consistent CFM output across the heat exchanger, preventing high-limit trips and ensuring optimal heat transfer. When diagnosing unit heater vibration issues or reduced airflow in Modine heaters, inspecting the pitch and integrity of this 20-inch, 4-blade assembly is standard protocol. This OEM part maintains the original equipment’s performance curve, ensuring that Modine unit heater fan replacement procedures meet factory specifications for noise reduction and motor longevity. It is engineered for a secure fit on the motor shaft, reducing mechanical stress on the Modine fan motor bearings during high-demand heating cycles.
Key Benefits for Professionals
- Precision Pitch Alignment: Optimized blade angle ensures maximum HVAC airflow efficiency while maintaining low decibel operation in commercial environments.
- Direct OEM Compatibility: Engineered as a drop-in replacement for Modine gas heater components, eliminating the need for field modifications or hub adjustments.
- Heavy-Gauge Construction: The aluminum alloy build prevents warping under high-static conditions and resists the corrosive effects of combustion byproducts.
- Balanced Rotation: Factory testing ensures minimal run-out, which extends the service life of the motor and reduces vibration-related hardware loosening.
Common Technical Questions
What are the symptoms of a failing fan blade in a Modine unit heater?
Technicians should look for excessive vibration, abnormal rhythmic humming, or a visible "wobble" during the startup sequence. These issues often stem from bent blades or debris accumulation, necessitating a replacement to protect the motor shaft.
Is this fan blade compatible with all Hot Dawg series heaters?
The 5H0630390004 is specific to certain BTU ranges, typically the HD100 and HD125 models. Always verify the specific frame size and motor shaft diameter before installation to ensure a proper interference fit.
Can I straighten a bent blade instead of replacing the assembly?
In a professional application, straightening a blade is not recommended. Achieving the precise factory balance is nearly impossible in the field, and an imbalanced blade will cause premature bearing failure in the unit heater motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
