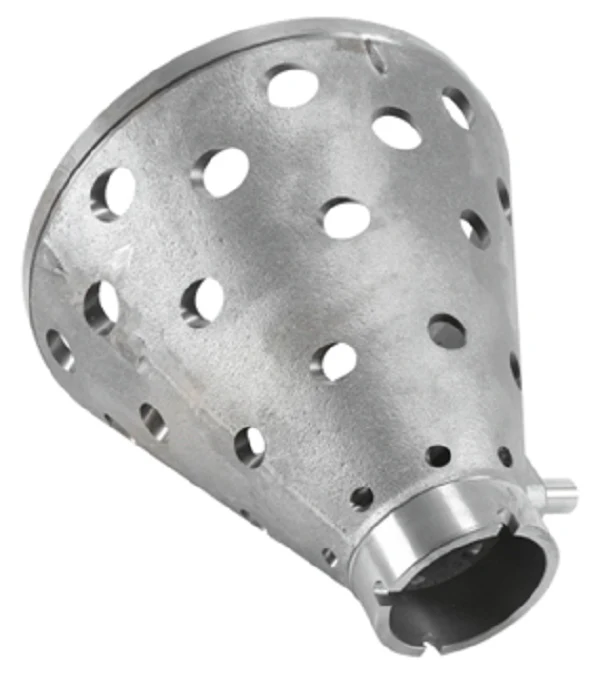

Maxon 53760 Mixing Cone Assembly
The Maxon 53760 Mixing Cone Assembly is a high-precision industrial burner component specifically engineered for Maxon OVENPAK 400 series burners, including models 445, 456M, 470M, 478M, EB6, and EB7. This assembly is critical for achieving a stoichiometric air-to-fuel ratio, shaping the flow pattern into a distinct cone for thorough homogenization before combustion. Designed to withstand the thermal stresses of continuous industrial heating and drying applications, the Maxon 53760 ensures stable flame retention and high fuel efficiency by preventing air leakage and premature nozzle wear. As a veteran-grade burner mixing cone spare part, it is essential for technicians performing routine HVAC combustion maintenance to ensure the 1/8-inch air gap for cooling is maintained via the centering screws. Utilizing this precise mixing cone assembly reduces unburned fuel emissions and prevents cone distortion, maximizing the longevity of the discharge sleeve and the overall stability of the gas burner system in demanding processing environments.
Key Benefits- Optimized Air-Fuel Mixing: Precisely directs flow for a cleaner, more complete combustion process and improved fuel economy.
- Broad Model Compatibility: Drop-in replacement for Maxon OVENPAK sizes 445, 456M, 470M, 478M, and External Blower (EB) sizes 6 and 7.
- Enhanced Thermal Stability: Built to endure high-temperature industrial processing without the rapid distortion typical of inferior aftermarket parts.
- Reliable Flame Retention: Ensures the pilot and main flame remain stable during modulation from low to high fire settings.
- Industrial-Grade Construction: Weighing approximately 24 lbs, this assembly offers the structural integrity required for heavy-duty HVACR applications.
What burner models are compatible with the Maxon 53760?
This assembly is specifically designed for Honeywell Maxon OVENPAK 400 burners, specifically sizes 445, 456M, 470M, 478M, and Model EB-6/EB-7 units.
Why is my current mixing cone showing signs of distortion or heat damage?
Cone distortion is often caused by over-tightening lock screws or restricted airflow. Ensure even spacing between the mixing cone OD and burner housing ID for proper cooling.
Can this mixing cone be used for both natural gas and propane applications?
Yes, the Maxon 53760 is suitable for various fuel gases, though technical adjustments to the gas train and discharge sleeve may be necessary for propane to manage noise and flame characteristics.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,055.39
-65%$1,055.39
$369.39Maxon 53760 Mixing Cone Assembly
