Maxon 200SMA11AA11BB22A0 Gas Valve

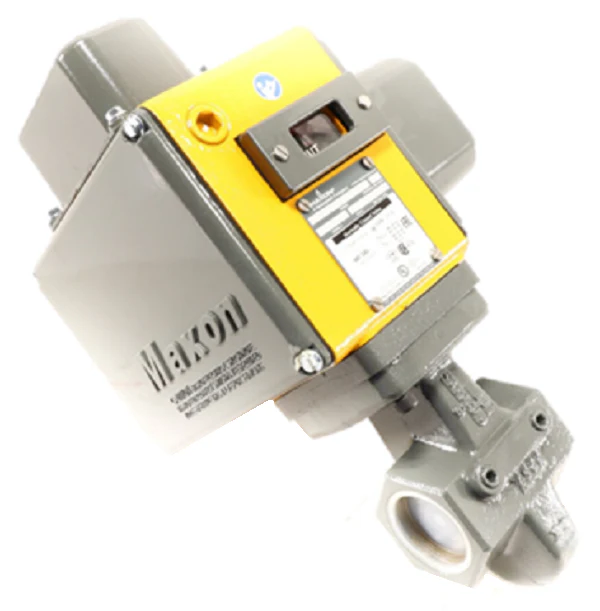

The Maxon 200SMA11AA11BB22A0 Gas Valve is a 2-inch, heavy-duty electromechanical safety shut-off valve (SSOV) engineered for high-demand industrial combustion systems. This normally closed, automatic-reset valve is built with a rugged cast iron body and features ANSI threaded (NPT) connections for secure integration into high-capacity fuel trains. Utilizing Internal Trim Package 1 and Buna-N O-rings, the unit provides reliable standard port flow capacity with a Cv of 86 and a maximum operating pressure differential (MOPD) of 70 PSIG.
Designed for professional contractors, this Maxon Series 5000 valve is powered by a 115VAC 60Hz motorized actuator with a precise 6-second motor timing. It includes VOS2/VCS2 switch options (Proof of Open/Proof of Closure) to provide essential feedback to your flame safeguard or BMS. The NEMA 4 enclosure ensures environmental protection in general purpose areas, while the metal-to-metal seating is micro-lapped to maintain Class VI leakage standards. This shut-off valve is the industry standard for precise gas flow control and failsafe performance in industrial heating and process applications.
Key Benefits- Industrial Durability: Cast iron construction with a NEMA 4 rated housing protects internal components in harsh mechanical environments.
- Enhanced Monitoring: Integrated VOS2 and VCS2 internal switches allow for clear proof-of-closure and proof-of-open signaling.
- Fast-Acting Safety: The powerful internal spring ensures a rapid return to the at-rest position in under one second upon power loss.
- Precise Operation: Automatic reset motorized actuator with 6-second timing prevents water hammer and ensures smooth startup cycles.
- High Flow Efficiency: Standard port design and 2-inch ANSI threading minimize pressure drops across the fuel line.
What media is compatible with the 200SMA11AA11BB22A0?
This valve is primarily designed for natural gas, propane, and other clean, non-corrosive gaseous fuels. The Buna-N seals are optimized for standard fuel gas applications.
Can the top actuator assembly be rotated for tight installations?
Yes, Maxon electromechanical valves feature field-rotatable top assemblies in 90-degree increments, allowing you to orient the conduit entries and visual indicators for better accessibility.
Is this valve suitable for hazardous location areas?
This specific configuration is rated for General Purpose areas. For Class I Division 2 requirements, a different Maxon model string with hazardous location certifications is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $4,530.69
-65%$4,530.69
$1,585.74Maxon 200SMA11AA11BB22A0 Gas Valve
