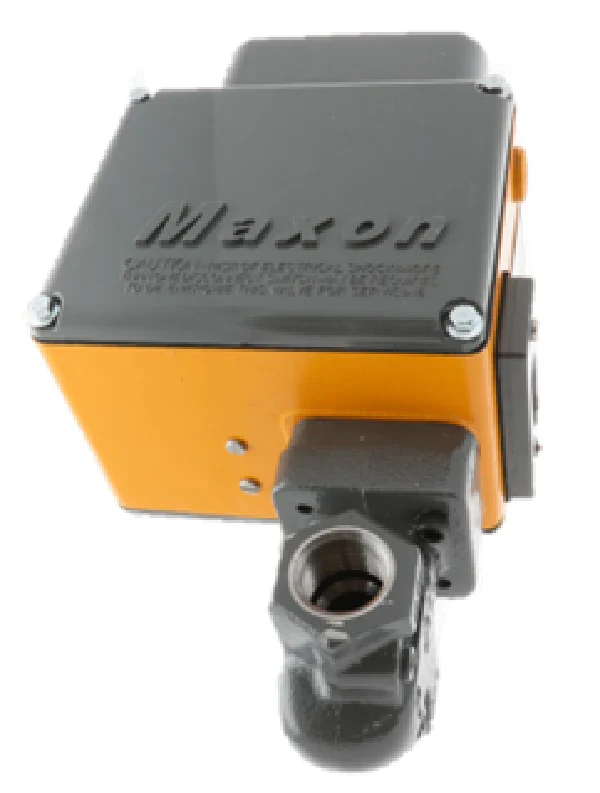

Maxon 100SMM11AA11BA-1A0 Gas Valve
The Maxon 100SMM11AA11BA-1A0 is a heavy-duty 1-inch ANSI threaded gas shut-off valve engineered for industrial combustion systems requiring high-reliability fuel management. This manual-reset gas valve features a 2-way normally closed configuration, ensuring positive shut-off during power loss or safety trips. Built with a rugged cast iron body and Buna body O-rings, the unit utilizes Internal Trim Package 1 for general-purpose compatibility with clean fuel gases. The standard port flow capacity design minimizes pressure drop while maintaining precise control. Operating on a 115Vac 60Hz solenoid, this valve includes VOS1/VCS1 switch options for proof-of-closure and open-position verification. The NEMA 4 enclosure rating protects internal components against dust and moisture, making it suitable for demanding boiler rooms and process heating environments. Technicians rely on the standard handle side plate for manual intervention and clear visual status indication during startup and maintenance cycles.
- Industrial-Grade Casting: The cast iron body construction provides the thermal and mechanical durability required for industrial gas safety shut-off applications.
- Enhanced Monitoring: Integrated VOS1/VCS1 limit switches facilitate remote monitoring of the valve stroke, ensuring the system meets stringent safety interlock requirements.
- Environmental Protection: A NEMA 4 rated enclosure allows for installation in wash-down or outdoor environments without compromising the 115Vac solenoid integrity.
- Standardized Flow: Designed with a 1" NPT connection and standard porting to integrate seamlessly into existing Maxon Series 8000 or 7000-style pipe trains.
How do I wire the VOS1/VCS1 switches on the Maxon 100SMM11AA11BA-1A0?
The Valve Open Signal (VOS1) and Valve Closed Signal (VCS1) switches are typically wired into the flame safeguard system’s interlock string to provide proof of closure. Ensure the 115Vac supply is disconnected before accessing the NEMA 4 housing.
Can this Maxon valve be used with corrosive gases?
This specific model uses Internal Trim Package 1 and Buna O-rings, which are rated for general-purpose fuels like natural gas and propane. For corrosive gases, contact a technician to verify chemical compatibility with the trim package.
What is the purpose of the manual-reset function on this gas valve?
The manual-reset mechanism prevents the gas line from reopening automatically after a safety trip or power failure, requiring a technician to physically engage the handle to restore fuel flow once the system is cleared.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
