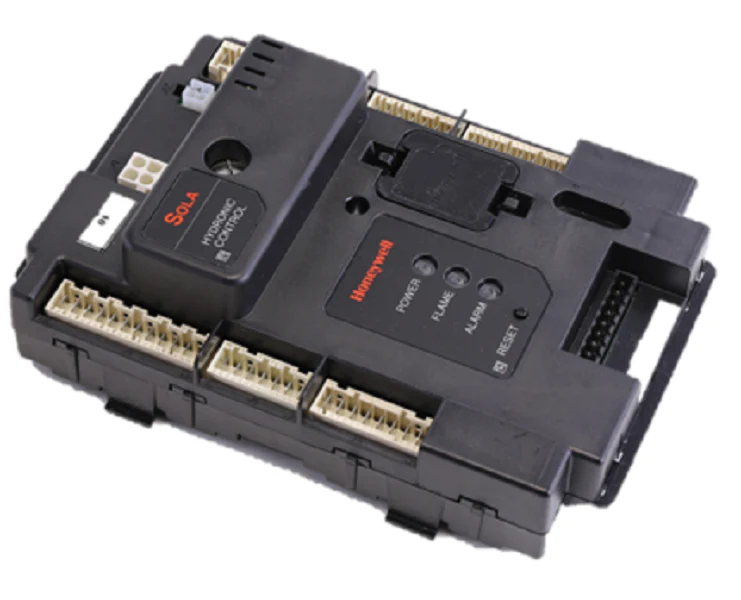

Laars Heating Systems RTXD7109 Replace Kit
The Laars Heating Systems RTXD7109 Replace Kit is a direct OEM solution for restoring the Neotherm Wave 3-4A control architecture. Engineered for high-efficiency condensing boilers and volume water heaters, this Neotherm Module Replace Kit serves as the central processing unit for system modulation and safety logic. As a veteran-grade HVAC replacement part, it handles critical functions including integrated PID temperature control, direct spark ignition sequencing, and advanced flame sensing to maintain peak thermal efficiency. Properly functioning Laars boiler controls are essential for achieving the unit's 10:1 turndown ratio and ensuring stable combustion across all firing rates. This kit is a 1-to-1 drop-in replacement designed to resolve common communication errors, erratic modulation, or ignition lockout issues. By utilizing a genuine RTXD7109 control module, contractors can ensure seamless integration with existing sensors, blower assemblies, and gas valves without the need for field modifications that compromise system integrity.
Key Benefits- Precise Modulation: Facilitates accurate air-to-gas ratio control to maximize fuel economy and system longevity.
- On-Board Diagnostics: Features advanced microprocessor logic for real-time fault detection and clear-text hazard reporting.
- Direct OEM Compatibility: Verified fit for Laars Neotherm series, eliminating the risks associated with generic alternatives.
- Comprehensive Safety: Orchestrates the high-limit control and pump delay cycles to protect the heat exchanger.
What symptoms indicate the need for an RTXD7109 replacement?
Technicians typically look for unresponsive touchscreens, ignition control failures that persist after electrode cleaning, or 'Internal Module Error' codes that prevent the boiler from initiating the pre-purge cycle.
Does this kit support multi-boiler lead-lag configurations?
Yes, this module supports Modbus communication and cascaded operation for up to eight units, allowing for synchronized firing in commercial header systems.
Is firmware configuration required after installation?
While the hardware is a direct fit, you must verify the specific parameter settings against the appliance rating plate to ensure the firing rate and temperature setpoints align with the original equipment configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
