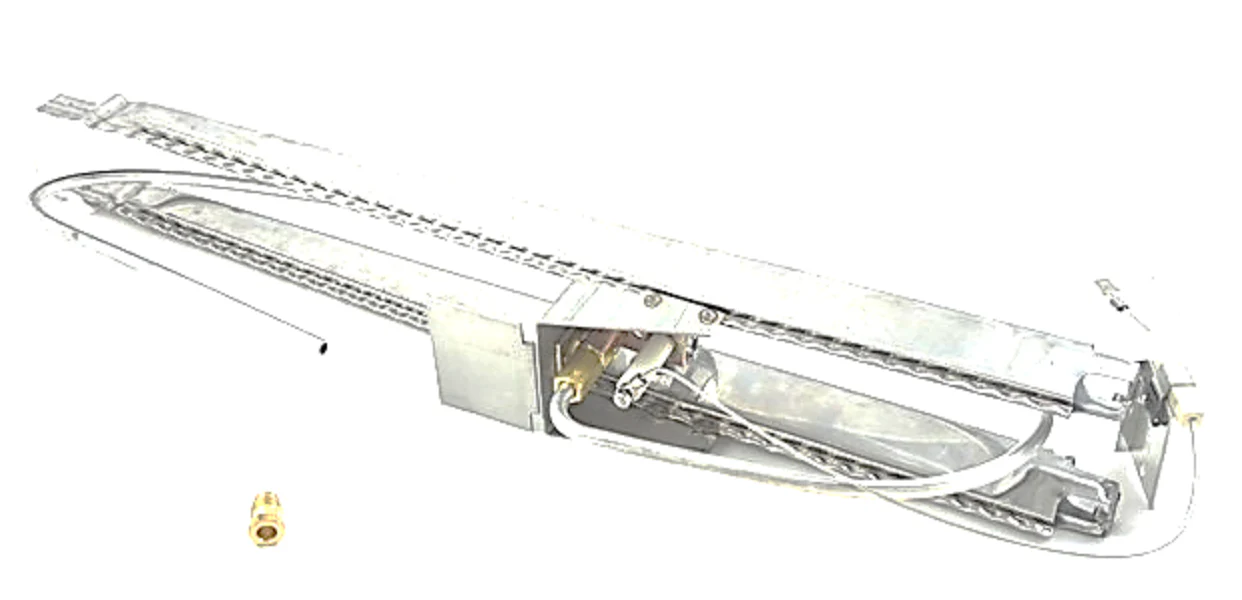

Laars Heating Systems R20607400 Pilot Assembly
The Laars Heating Systems R20607400 Pilot Assembly is a critical replacement component engineered to maintain precise ignition and flame rectification in gas-fired hydronic systems. This pilot assembly with burner is a direct OEM match for the obsolete 20607400, ensuring zero-gap compatibility with your existing manifold and gas valve configuration. Operating at 24 volts, this assembly integrates a high-output spark ignition electrode and a specialized pilot burner designed to provide a stable, consistent flame pattern that eliminates ignition lag and nuisance lockouts. Built for the rigors of high-cycle heating applications, the R20607400 features a durable thermopile housing and precision-drilled orifices to optimize fuel-to-air mixing in the combustion chamber. Whether you are servicing a furnace, a high-efficiency boiler, or a large-scale water heater, this Laars pilot burner assembly provides the technical reliability required for professional-grade field repairs. The kit typically includes the necessary pilot supply line connections and mounting brackets to streamline the installation process on various gas-fired heating systems.
Key Benefits- OEM Precision: Direct 24V replacement for the Laars R20607400, ensuring exact physical alignment with burner access doors and speed clips.
- Integrated Burner: Ships as a complete pilot assembly with burner to ensure optimal combustion and a stable flame for immediate ignition.
- Spark Ignition Reliability: Engineered for high-voltage spark-to-ground rods, reducing "flame out of sequence" errors and intermittent ignition failures.
- Broad Compatibility: Tailored for diverse Laars heating systems, providing a versatile solution for hydronic boilers and gas-fired commercial equipment.
- Rugged Construction: Utilizing industrial-grade materials to withstand continuous thermal stress and prevent carbon buildup on the electrode.
Is the R20607400 compatible with older Teledyne Laars systems?
Yes, this unit serves as the current technical replacement for several legacy and obsolete pilot assemblies, including part number 20607400. It is designed to mount using standard pilot adapter brackets found on most mid-to-high BTU units.
Does this assembly include the pilot supply line?
This specific assembly focuses on the burner and electrode components. For a complete overhaul, ensure that your existing inverted flared gas lines are free of blockage or cross-threading before reconnecting to the new pilot burner.
Can I use this for both natural gas and propane configurations?
While the assembly is compatible with various gas-fired equipment, always verify that the orifice size matches your specific fuel source mentioned on the boiler's rating plate to prevent improper combustion or soot accumulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
