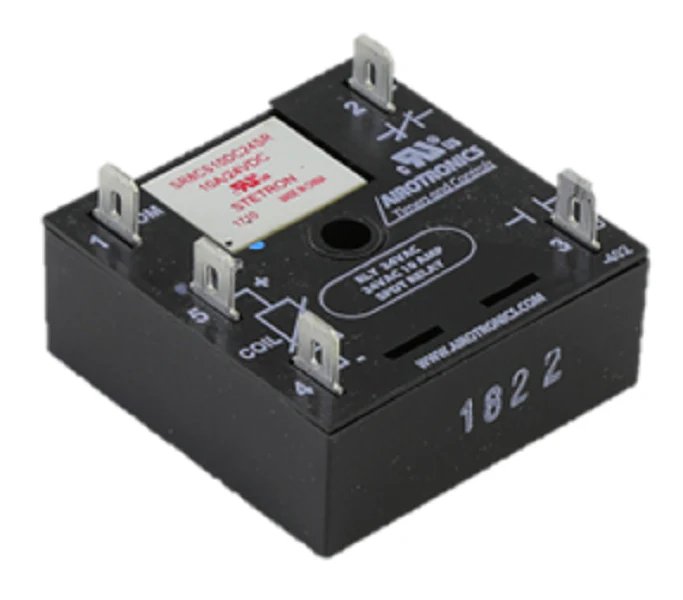

Laars Heating Systems R2006100 Relay
The Laars Heating Systems R2006100 Relay is a high-performance 24V 10A DPDT HVAC control relay engineered for precise switching in hydronic and steam heating applications. As a genuine OEM Laars replacement part, this double-pole double-throw (DPDT) relay allows for the simultaneous control of two independent circuits, making it an essential component for complex boiler control wiring and system sequencing. Designed to meet exact Laars R2006100 specifications, it handles up to a 10-amp inductive load, ensuring reliable engagement of circulator pumps, blowers, or secondary control logic loops without premature arc-over.
Field technicians frequently utilize this 24VAC DPDT relay in residential and commercial environments where space-constrained control panels require a compact yet robust switching solution. The silver alloy contacts are built to withstand high-cycle switching, maintaining low contact resistance over time. Whether you are troubleshooting Laars Rheos model RHCH or RHCV systems or upgrading a generic hydronic heating relay, the R2006100 provides the exact electrical characteristics needed to match the original factory sequence of operation.
Key Benefits
- Enhanced Circuit Versatility: The DPDT configuration provides two sets of contacts to manage multiple system components from a single 24V signal.
- OEM Precision Fit: Eliminates guesswork during field repairs by matching the original footprint and electrical ratings of Laars heating equipment.
- High Load Capacity: Rated for 10 Amps, allowing it to safely switch higher-draw HVAC components compared to standard pilot-duty relays.
- Industrial Durability: Robust internal construction resists mechanical wear in high-demand commercial boiler environments.
Common Questions
Is the R2006100 compatible with both AC and DC control circuits?
This relay is primarily designed for 24V AC control circuits common in HVAC systems, though it can operate in specific DC applications if the coil voltage remains within manufacturer tolerances.
What is the difference between this DPDT relay and a SPDT relay?
A DPDT relay like the R2006100 controls two separate poles (circuits) with two throw positions, whereas a SPDT only manages one. This allows the R2006100 to toggle two different loads simultaneously.
Can this relay replace the R2006200 model?
While they share similarities, you must verify the specific contact ratings and coil resistance. Always match the part number exactly to your unit’s service manual to ensure proper control board communication.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $81.34
-65%$81.34
$28.47Laars Heating Systems R2006100 Relay
