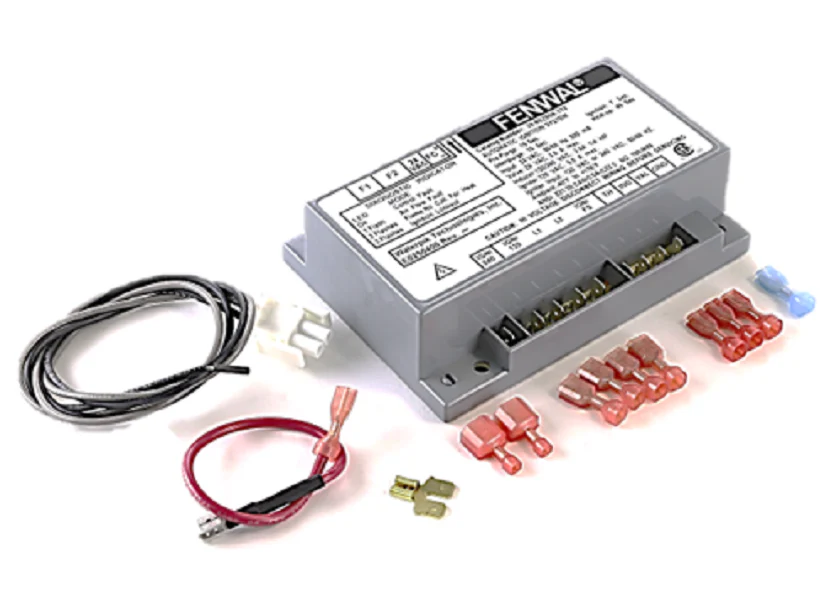

Laars Heating Systems R0408100 Module
The Laars Heating Systems R0408100 Module is a critical 24V direct spark ignition control engineered for high-performance gas-fired boilers and pool heaters. This digital heater ignition control is a direct replacement for Teledyne Laars and Jandy units, specifically designed to manage the combustion sequence in Lite2 LD, LX, and LT Series heaters. Operating on a 24VAC circuit, the module features a 15-second pre-purge (15sPP) cycle to clear residual gases, followed by a precise 7-second trial for ignition (7sTFI) window. These specific timing parameters ensure safe boiler combustion and help prevent ignition lockout issues common in older HVACR systems. As a veteran-grade OEM replacement part, it provides reliable flame sensing and integrated diagnostics to streamline troubleshooting for field technicians working on Laars boiler systems.
Key Benefits for Technicians:- Universal Compatibility: Fits a wide range of Jandy JXi and Laars Lite2 models, including LD125, LD175, and LX400.
- Enhanced Safety Protocols: The 15-second pre-purge ensures the combustion chamber is clear, reducing the risk of delayed ignition.
- Diagnostic Reliability: Integrated circuitry monitors the flame sensor and transformer outputs to maintain HVAC system efficiency.
- Direct OEM Fit: Designed for rapid installation into existing 24V ignition wiring harnesses without the need for field modifications.
What does 15sPP 7sTFI mean for system operation?
This indicates the module performs a 15-second pre-purge to vent the heat exchanger before attempting a 7-second spark window to establish a flame. If no flame is detected within 7 seconds, the R0408100 module will safely terminate the trial.
Is the R0408100 compatible with Low NOx models?
Technicians should note that this specific ignition module is typically not intended for use with "Low NOx" LX or LT models; always verify the part number against the original equipment nameplate before installation.
How do I troubleshoot a failure to ignite?
First, verify 24VAC at the transformer. If the module completes the pre-purge but fails during the 7-second trial, inspect the spark rod gap and flame sensor for carbon buildup or grounding issues.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $944.26
-65%$944.26
$330.49Laars Heating Systems R0408100 Module
The Laars Heating Systems R0408100 Module is a critical 24V direct spark ignition control engineered for high-performance gas-fired boilers and pool heaters. This digital heater ignition control is a direct replacement for Teledyne Laars and Jandy units, specifically designed to manage the combustion sequence in Lite2 LD, LX, and LT Series heaters. Operating on a 24VAC circuit, the module features a 15-second pre-purge (15sPP) cycle to clear residual gases, followed by a precise 7-second trial for ignition (7sTFI) window. These specific timing parameters ensure safe boiler combustion and help prevent ignition lockout issues common in older HVACR systems. As a veteran-grade OEM replacement part, it provides reliable flame sensing and integrated diagnostics to streamline troubleshooting for field technicians working on Laars boiler systems.
Key Benefits for Technicians:- Universal Compatibility: Fits a wide range of Jandy JXi and Laars Lite2 models, including LD125, LD175, and LX400.
- Enhanced Safety Protocols: The 15-second pre-purge ensures the combustion chamber is clear, reducing the risk of delayed ignition.
- Diagnostic Reliability: Integrated circuitry monitors the flame sensor and transformer outputs to maintain HVAC system efficiency.
- Direct OEM Fit: Designed for rapid installation into existing 24V ignition wiring harnesses without the need for field modifications.
What does 15sPP 7sTFI mean for system operation?
This indicates the module performs a 15-second pre-purge to vent the heat exchanger before attempting a 7-second spark window to establish a flame. If no flame is detected within 7 seconds, the R0408100 module will safely terminate the trial.
Is the R0408100 compatible with Low NOx models?
Technicians should note that this specific ignition module is typically not intended for use with "Low NOx" LX or LT models; always verify the part number against the original equipment nameplate before installation.
How do I troubleshoot a failure to ignite?
First, verify 24VAC at the transformer. If the module completes the pre-purge but fails during the 7-second trial, inspect the spark rod gap and flame sensor for carbon buildup or grounding issues.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
