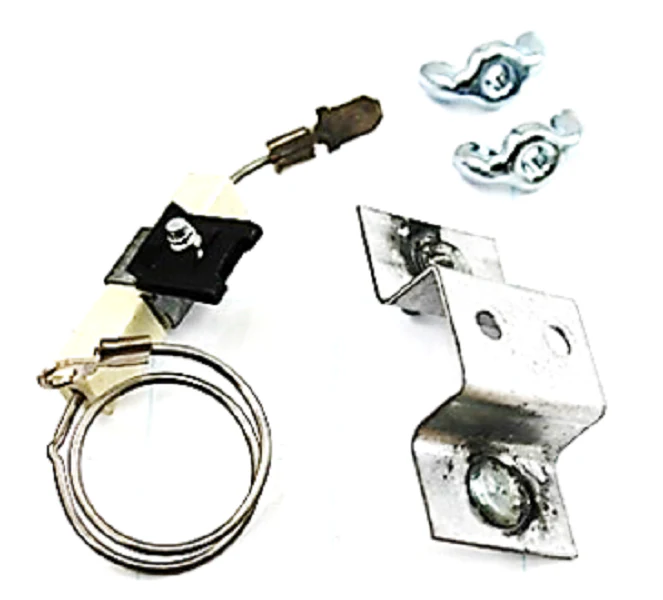

Laars Heating Systems R0011600 Insulator Assembly
The Laars R0011600 Insulator Assembly is a critical high-temperature ceramic component engineered for the combustion chamber of high-efficiency hydronic boilers. Designed specifically for the Laars Mighty Therm and Pennant series, this ceramic insulator assembly maintains the thermal integrity of the burner plate and prevents heat bypass into the cabinet. As a veteran-grade HVAC replacement part, it ensures the spark igniter or flame sensor is properly isolated from the chassis, preventing ground faults that lead to intermittent ignition lockouts or boiler flame failure. When performing a combustion chamber teardown, inspecting these boiler gaskets and insulators is mandatory to ensure the unit maintains its rated AFUE performance. This assembly withstands extreme thermal cycling without cracking or degradation, providing a reliable dielectric barrier. For contractors, utilizing OEM Laars heating parts like the R0011600 is essential for maintaining strict tolerances within the heat exchanger assembly and ensuring safe, long-term operation of the burner system.
Technical Specifications & Benefits
- High-Dielectric Ceramic Construction: Provides superior electrical insulation for ignition components under high-heat conditions.
- Precision Fitment: Engineered as a direct drop-in replacement for Mighty Therm R0011600, ensuring zero-clearance sealing.
- Thermal Stress Resistance: Constructed to resist fracture during rapid firing cycles and high-BTU load demands.
- System Compatibility: Validated for use in Laars Pennant and Mighty Therm models to maintain combustion chamber pressure limits.
Common Installation & Diagnostic Questions
Why is the ceramic insulator on my Laars boiler cracking?
Cracking is typically caused by over-torquing during installation or extreme localized heat due to delayed ignition. Replace the insulator assembly if any hairline fractures are visible to prevent voltage leakage.
Can I use a generic ceramic sleeve instead of the R0011600?
Using non-OEM materials can lead to improper flame sensing current (microamps) and potential safety hazards. This boiler insulator assembly is calibrated for the specific thermal expansion rates of Laars combustion chambers.
How do I know if this part is failing?
Look for carbon tracking or soot on the ceramic surface, which indicates electrical arcing. If the boiler is throwing a "no flame signal" error despite a clean sensor, the R0011600 may be compromised.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
