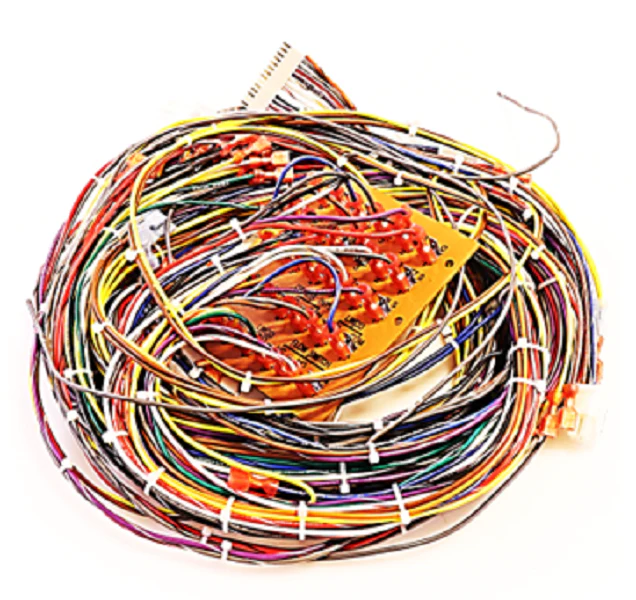

Laars Heating Systems E2307501 Wiring Harness
The Laars Heating Systems E2307501 Wiring Harness is a critical 120V electrical assembly engineered for precise power distribution across commercial and residential hydronic systems. Designed for seamless integration with replacement blower motors and multi-stage ignition controls, this harness features a double-pole single-throw (DPST) configuration to ensure robust switching logic. As an OEM Teledyne Laars component, it eliminates the high impedance and voltage drops often found in universal third-party alternatives, maintaining the signal integrity required for modern modulating condensing boilers and high-efficiency heaters.
For service contractors, this HVAC wiring assembly provides a streamlined solution for field-side electrical repairs, reducing the risk of intermittent faults in the secondary control circuit. The harness is built to withstand the thermal stress of industrial boiler rooms, utilizing high-grade insulation to prevent degradation over cycles. Whether you are performing a full system control upgrade or replacing a damaged 120V lead, the E2307501 harness ensures that all safety limits and operational sensors communicate effectively within the Laars heater ecosystem.
Key Benefits- Factory-Correct Compatibility: Specifically engineered for Laars boiler controls to ensure exact terminal pinouts and secure electrical connections.
- Enhanced Circuit Reliability: Features a high-voltage DPST arrangement that stabilizes 120V power delivery to critical components like blower motors and inducer assemblies.
- Field Installation Efficiency: Pre-terminated leads and standardized connectors reduce technician labor time and minimize wiring errors in the field.
- Industrial-Grade Build: Constructed with heavy-duty insulation designed to resist moisture, oil, and extreme temperature fluctuations common in HVAC environments.
What components does this harness primary connect?
The E2307501 is primarily utilized to bridge the electrical path between the main control board, the safety assembly, and the blower motor in compatible Laars units.
Is this a direct replacement for 24V control circuits?
No, this specific harness is designed for 120V power distribution. Always verify your system's voltage requirements and wiring diagrams before installation.
Can this harness be used to troubleshoot intermittent power loss?
Yes, replacing a brittle or corroded original harness with this OEM part often resolves intermittent communication errors between the boiler's sensors and the ignition module.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
