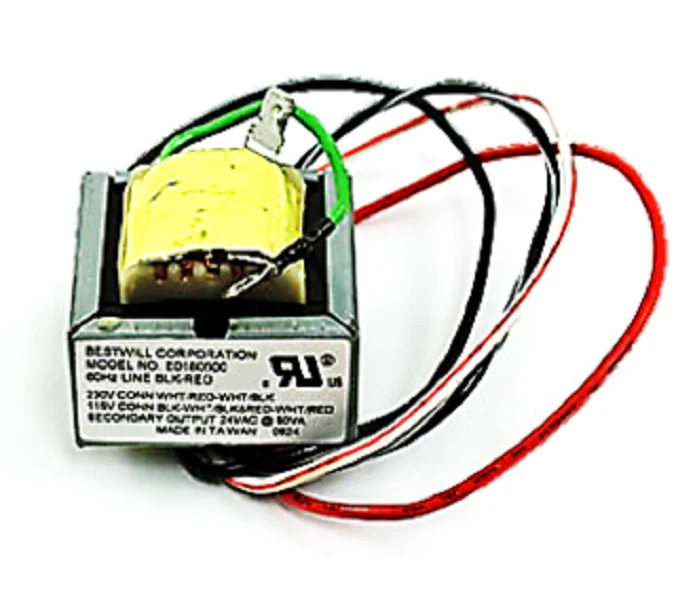

Laars Heating Systems E0180500 Transformer
The Laars Heating Systems E0180500 is a heavy-duty industrial grade transformer specifically engineered for high-performance hydronic systems. Providing a dependable 120V to 24V step-down conversion, this 50VA component is a critical HVAC control transformer used to power the low-voltage circuitry in Laars Pennant boilers and water heaters. As a veteran technician, you know that maintaining a stable 24VAC output is non-negotiable for protecting the ignition control module and ensuring the gas valve operates without dropouts. This transformer features a 50VA power rating, offering ample overhead for multi-relay configurations and preventing the common 24V control circuit failures associated with undersized 40VA alternatives. Whether you are performing a boiler transformer replacement or troubleshooting a system with a blank thermostat, the E0180500 provides the robust construction needed to withstand the thermal cycling and electrical noise of a demanding mechanical room environment.
Key Benefits:- Precision Step-Down Performance: Converts 120V primary to 24V secondary voltage with high efficiency to stabilize sensitive control boards.
- High Power Capacity: The 50VA rating supports larger control loads, reducing the risk of overheating during peak demand.
- OEM Compatibility: Designed for seamless integration with Laars Heating Systems equipment, including Pennant 200-400 models.
- Industrial Build Quality: Features durable windings and laminations to minimize transformer humming and vibration.
Why is my furnace transformer humming loudly?
Audible buzzing often indicates loose internal laminations or a substantial voltage overload. If the 50VA transformer is vibrating excessively, check for a short in the low-voltage wiring or a failing contactor coil that is drawing excessive current.
How do I test the Laars E0180500 with a multimeter?
With line voltage applied to the primary side, you should read approximately 24-28VAC across the secondary terminals. A reading of 0V on the secondary while the primary has 120V signal indicates an internal failure, often caused by a power surge or a short to ground in the thermostat wire.
Can I use a 40VA transformer instead of this 50VA model?
It is not recommended. Increasing the VA rating is acceptable, but decreasing it can lead to frequent circuit breaker trips and premature failure of the transformer primary due to excessive heat generation under load.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
