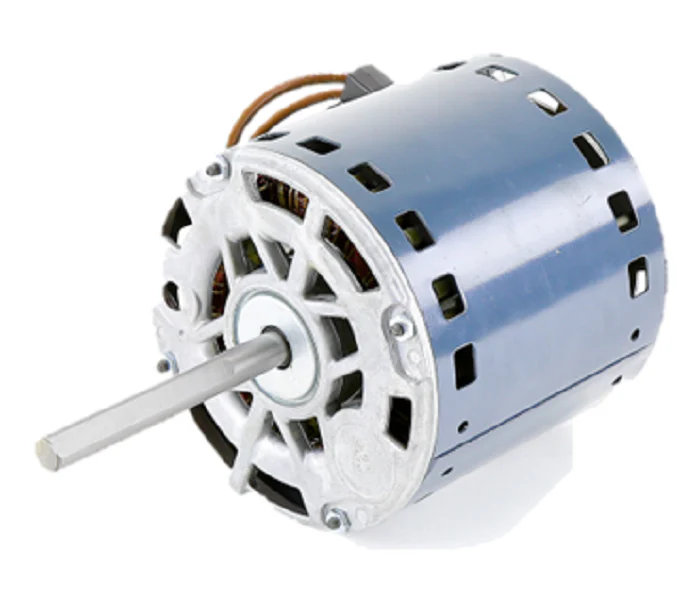

Heil Quaker ICP L06I004 Motor
The Heil Quaker ICP L06I004 is a direct-drive HVAC blower motor designed for heavy-duty air handling applications. Operating at 115V with a 3/4 HP output, this 48 frame blower motor delivers consistent torque for residential and light commercial furnaces and fan coil units. This ICP replacement motor features a high-efficiency design with a standard 1075 RPM rating, ensuring proper static pressure management across the evaporator coil. Built with all-angle sleeve bearings and Class B insulation, it handles demanding thermal cycles without premature winding failure. For contractors performing a field swap, the NEMA 48 frame configuration ensures critical mounting dimensions align with existing blower housings. This permanent split capacitor (PSC) motor requires a 10 MFD/370V capacitor for optimal start-up torque and amperage draw. When diagnosing HVAC motor failure, verifying the L06I004 technical specs against the original data plate is essential for maintaining factory-specified CFM across the heat exchanger.
Key Benefits for Technicians:- High-Torque Performance: 3/4 HP rating provides the necessary lift for high-static ductwork systems.
- Drop-in Compatibility: Standard 48 frame diameter and shaft length reduce installation time for ICP furnace motor replacement.
- Thermal Protection: Internal automatic reset prevents overheating during high-load conditions.
- Reversible Rotation: Simplified electrical lead configuration allows for CCW or CW rotation to match specific blower wheel requirements.
What capacitor is required for the L06I004?
This motor typically requires a 10 MFD 370V run capacitor; always verify the rating on the motor nameplate during installation.
Can this motor replace a 1/2 HP blower motor?
While the frame size matches, increasing horsepower can lead to excessive airflow and noise if the ductwork cannot handle the increased CFM. It is best to match the original HP rating unless air balance adjustments are made.
Is this a multi-speed motor?
Yes, the L06I004 typically features 3 or 4 speed taps, allowing for precise tuning of cooling and heating airflow stages.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
