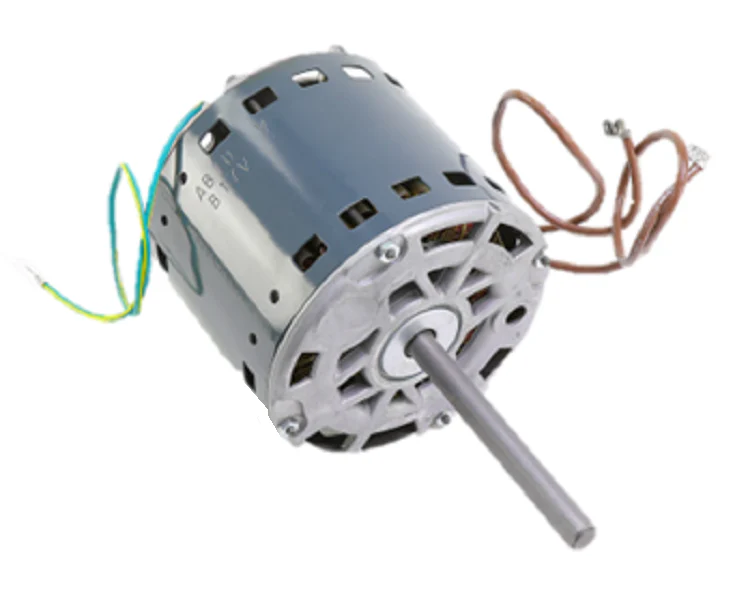

Heil Quaker ICP L06H004 Motor
The Heil Quaker ICP L06H004 Motor is a direct OEM blower motor replacement designed for high-static residential and light commercial air handlers and furnaces. Operating at 115V with a 1/2 HP output, this 48 frame motor runs at a synchronous speed of 1075 RPM, providing the torque necessary to maintain calibrated CFM across various ductwork configurations. As a genuine International Comfort Products replacement part, it ensures electrical compatibility and mounting alignment for Heil, Comfortmaker, and Tempstar equipment, eliminating the vibration and overheating issues common with "will-fit" universal motors. This PSC blower motor features a standard 1/2-inch shaft and requires a specific run capacitor (verify MFD rating on the nameplate) to ensure high-efficiency operation and proper Amp draw under load. For contractors performing a furnace blower motor replacement, the L06H004 offers a drop-in solution to restore factory-spec static pressure and airflow velocity.
Technical Benefits for Professionals:
- Direct OEM Compatibility: Engineered specifically for ICP chassis to ensure correct lead lengths and plug configurations.
- Optimized Airflow: Maintains the 1075 RPM speed rating required for proper heat exchanger cooling and evaporator coil performance.
- Rugged 48 Frame Design: Features standard heavy-duty housing for heat dissipation and mechanical stability in high-duty cycle environments.
- Permanent Split Capacitor (PSC): Provides a reliable balance of starting torque and running efficiency for consistent air distribution.
Common Installation Questions:
What is the frame size and shaft diameter for the L06H004?
This is a NEMA 48 frame motor with a standard 1/2-inch diameter shaft, suitable for most ICP blower wheel hubs.
Does this motor include the run capacitor?
This is the motor only. It is best practice to replace the capacitor during any 1/2 HP 115V 1075 RPM motor installation to ensure the winding circuit operates within specified tolerances.
Can this motor replace a different horsepower rating?
No, always match the 1/2 HP and 115V ratings to the original equipment manufacturer (OEM) data plate to prevent control board failure or motor burnout.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
