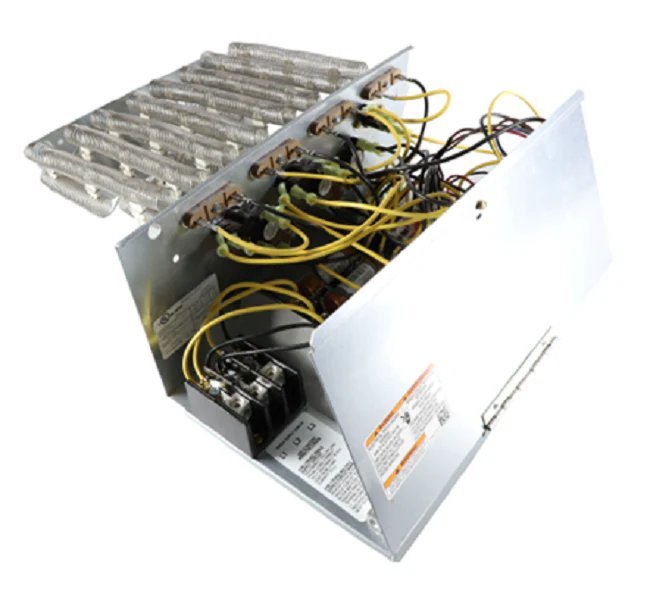

Heil Quaker ICP EHK25AHCF1 Heat Kit
The Heil Quaker ICP EHK25AHCF1 Heat Kit is a field-installed 25kW electric heater designed for high-capacity residential and light commercial air handlers. This ICP electric heat kit provides reliable supplemental or emergency heat for Heil air handlers, Tempstar fan coils, and other International Comfort Products units. Engineered for 208/230V single-phase or three-phase configurations, this kit features nickel-chromium heating elements and integrated circuit breaker protection to ensure safe operation under high-demand heating cycles. As a veteran-grade HVAC replacement part, it utilizes a plug-and-play wiring harness for seamless integration with the existing control board, facilitating precise staging and efficient heat pump backup performance. This 25kW unit is specifically pulled for larger 4-ton to 5-ton systems requiring significant BTU output to maintain setpoints during extreme ambient drops.
Key Benefits- High-Capacity 25kW Output: Delivers robust supplemental heating for large-tonnage air handler applications.
- Integrated Circuit Breakers: Provides essential overcurrent protection and serves as a local disconnect for the heating section.
- OEM Compatibility: Designed for a precise fit within ICP family brands, including Heil, Comfortmaker, and Keeprite.
- Heavy-Duty Construction: Features high-grade heating coils and corrosion-resistant mounting plates for longevity in high-static environments.
- Simplified Installation: Includes a factory-authorized wiring harness for quick connection to the indoor fan coil control system.
Is the EHK25AHCF1 compatible with variable-speed air handlers?
Yes, this 25kW heat kit is designed to work with both fixed-speed and variable-speed ECM motors, provided the air handler's cabinet size and minimum CFM requirements are met.
Can this unit be converted between single-phase and three-phase power?
Standard ICP EHK series kits of this size often allow for field conversion; however, you must verify the specific wiring diagram on the kit to ensure jumper configurations match your job site’s electrical supply.
What is the minimum airflow required for a 25kW kit?
Large electric heaters require significant CFM delivery to prevent limit switches from tripping. Always reference the air handler's technical data sheet to ensure the blower can maintain the necessary static pressure and temperature rise.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
