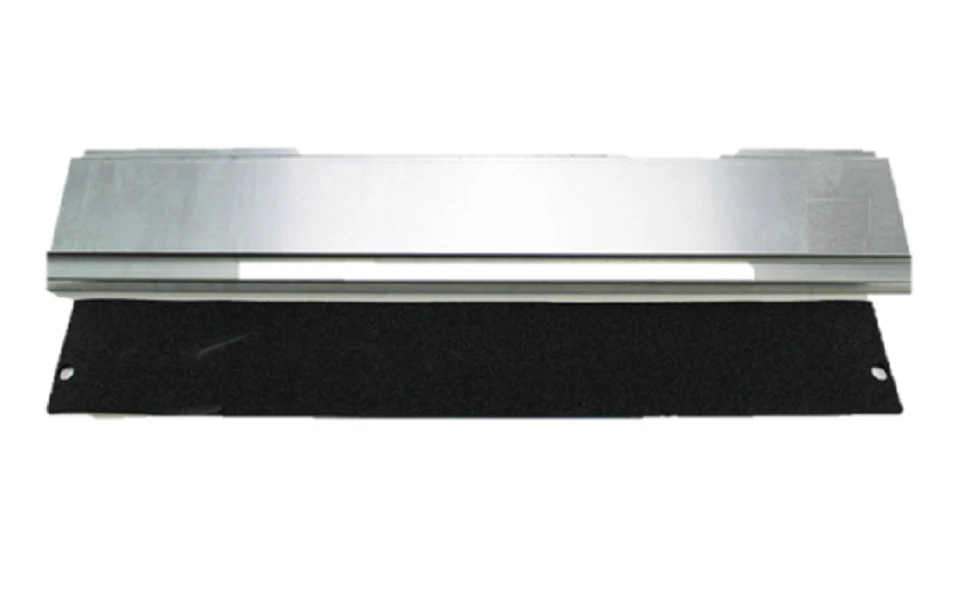

Heil Quaker ICP EBAC01DFS Downflow Kit
The Heil Quaker ICP EBAC01DFS Downflow Kit is a critical OEM component designed for field-converting upflow/horizontal fan coils into a downflow configuration. Engineered specifically for slope coil units, this kit ensures structural integrity and moisture management when the air orientation is inverted. It facilitates a professional-grade downflow conversion for ICP family brands, maintaining factory-spec performance in tight mechanical closets or specific residential footprints where downward air discharge is required.
For technicians in the field, the EBAC01DFS conversion kit is essential for managing condensate drainage and providing stable coil support brackets. This package typically includes insulated support rails, drip shields, and specialized gaskets to prevent air bypass and ensure HVAC drainage efficiency. Utilizing genuine ICP replacement parts like the EBAC01DFS guarantees that the internal geometry of the 1.5 to 3-ton air handler remains aligned, preventing the common performance losses associated with improper slope coil inversion. This is not just an accessory; it is a required installation kit for any ICP fan coil downflow project involving slope-style evaporators.
Key Benefits:- Ensures precise condensate water drainage to prevent pooling and secondary damage during downflow operation.
- Provides robust coil support brackets that stabilize the evaporator assembly in the inverted position.
- Includes the necessary air seals and drip shields to maintain system static pressure and overall HVAC efficiency.
- Developed as a genuine OEM part for seamless compatibility with Heil, Quaker, Comfortmaker, and Tempstar units.
Which fan coil models are compatible with the EBAC01DFS?
The EBAC01DFS is primarily designed for ICP fan coils featuring slope coils, typically found in 1.5-ton through 3-ton WAHL, WAPL, and WAXL series air handlers. Always verify your specific model number against the manufacturer?s conversion chart.
Does this kit include the sub-base?
No, the EBAC01DFS is a downflow conversion kit for the internal coil and cabinet. Combustible floor sub-bases or specialized gaskets may be required separately depending on the installation surface and local codes.
Why is a conversion kit required instead of just flipping the unit?
Flipping a standard upflow unit without a downflow kit leads to improper drainage and moisture being pulled into the airstream. This kit provides the specific drip shields and diverted pans necessary to manage gravity-fed condensate in a downward-blowing system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
