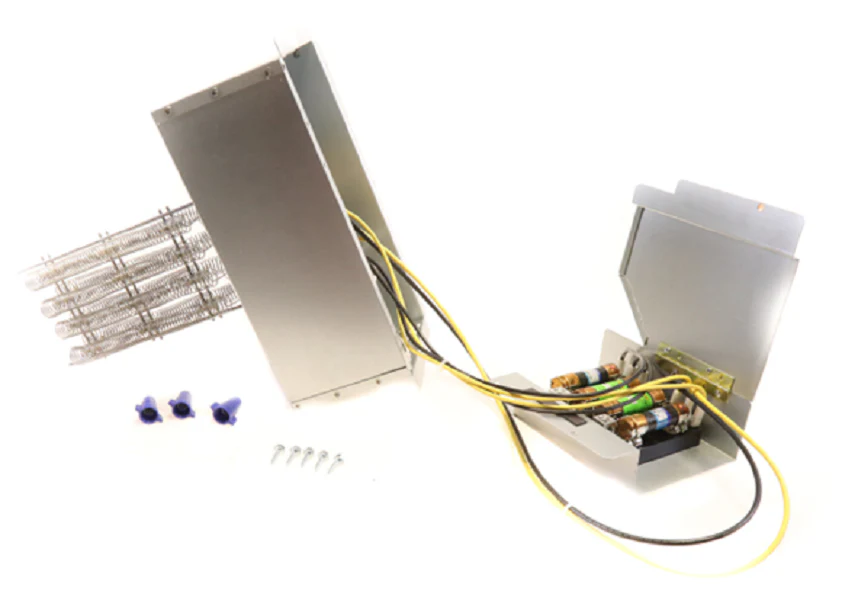

Heil Quaker ICP CPHEATER050B00 Heater Kit
The Heil Quaker ICP CPHEATER050B00 is an electric heat kit designed for seamless integration into specific air handlers and package units. This 10kW heater kit provides supplemental or primary heating, delivering approximately 34,121 BTUs of heat energy. Engineered for ICP HVAC equipment, this field-installed accessory features high-grade nickel-chromium heating elements for consistent thermal transfer and long-term resistance to oxidation. The assembly includes premium limit switches for thermal protection, ensuring the unit de-energizes if airflow drops below critical thresholds. Designed for 208/240V single-phase applications, the CPHEATER050B00 utilizes a heavy-gauge galvanized steel housing to maintain structural integrity within the high-velocity airstream. For contractors, the plug-and-play wiring harness and pre-punched mounting holes reduce installation time during HVAC electric heat strip replacement. Ensuring the correct KW rating and minimum circuit ampacity (MCA) is vital for matching the branch circuit breaker size and wire gauge required for safe operation.
- Direct OEM Fit: Specifically engineered for Heil, Quaker, and other ICP brands to ensure perfect cabinet alignment and electrical terminal matching.
- Reliable Thermal Safety: Equipped with primary and secondary automatic reset thermal limits to prevent overheating during low static pressure conditions.
- Corrosion-Resistant Construction: Built with galvanized steel frames and ceramic insulators to withstand high-temperature cycling without degrading.
- Simplified Field Installation: Includes the necessary control plugs and hardware to integrate directly into the existing unit control board.
Common Questions
Is this 10kW heater kit compatible with my air handler?
The CPHEATER050B00 is designed for specific ICP-manufactured air handlers and package units. You must verify the model number on your unit's data plate against the manufacturer’s accessory chart to ensure proper clearance and electrical compatibility.
What are the electrical requirements for a 10kW electric heat strip?
A 10kW kit typically requires a dedicated 60-amp circuit breaker when operated at 240V. Always calculate the Minimum Circuit Ampacity (MCA) and Maximum Overcurrent Protection (MOP) based on the specific blower motor and heater combination found on the unit’s rating plate.
Can I replace a smaller 5kW kit with this 10kW model?
Yes, provided the air handler is rated for a 10kW maximum heater and your existing field wiring and circuit breakers are upsized to handle the increased amperage draw of the larger heating elements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
