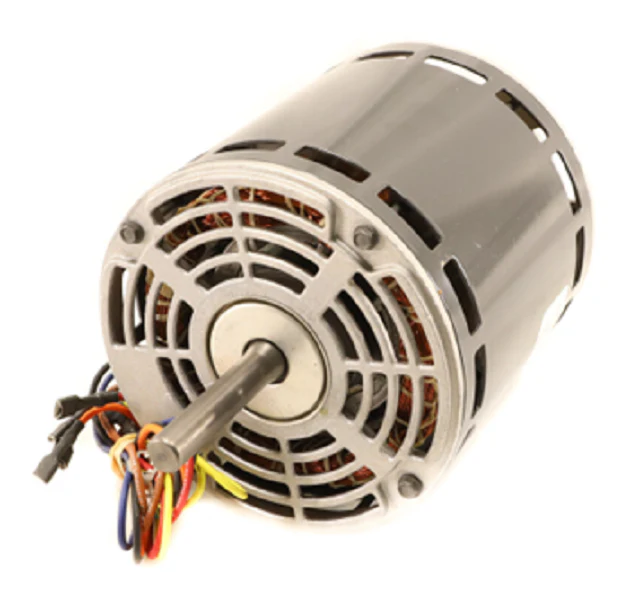

Heil Quaker ICP 8079620 Motor
The Heil Quaker ICP 8079620 Motor is a heavy-duty, 3/4 HP PSC blower motor designed for high-static pressure applications in residential and commercial air handlers. Operating at 208-230V single-phase power, this 4-speed motor delivers up to 1100 RPM, allowing for precise airflow tuning across diverse ductwork configurations. Built on a standard 48 NEMA frame size, it features a sleeve bearing design and a band mount housing for simplified drop-in installation. With a 6.8 Amp draw and clockwise (CW) rotation, this direct drive blower motor ensures consistent performance in critical ICP, Heil, and Tempstar HVAC systems. Techs should verify capacitor requirements (typically 10-15 MFD/370V) and lead wire lengths before arriving at the job site. This multi-speed HVAC motor provides a reliable OEM furnace motor replacement solution, maintaining optimal CFM delivery while adhering to strict electrical tolerances required for modern evaporator coil airflow management.
- Efficient Airflow Control: 4-speed taps allow for optimized CFM settings in heating and cooling modes.
- Universal 48 Frame: Standardized dimensions ensure compatibility with existing mounting brackets and blower wheels.
- Industrial Build: Permanent Split Capacitor (PSC) design offers high starting torque and thermal overload protection.
- Direct Replacement: Designed specifically for Heil Quaker and ICP equipment to eliminate field modifications.
Common Questions
What is the rotational direction of the 8079620?
This motor is lead-end clockwise (CW) rotation; always verify the blower wheel pitch before mounting to prevent airflow restriction.
Can I use this 3/4 HP motor to replace a 1/2 HP motor?
It is not recommended to oversize the horsepower as it may lead to higher amp draws and potential component failure; always match the nameplate HP and voltage.
Which mounting style does this motor use?
It utilizes a band mount (torsion flex) configuration, which is standard for many furnace and air handler blower assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $495.81
-65%$495.81
$173.53Heil Quaker ICP 8079620 Motor
The Heil Quaker ICP 8079620 Motor is a heavy-duty, 3/4 HP PSC blower motor designed for high-static pressure applications in residential and commercial air handlers. Operating at 208-230V single-phase power, this 4-speed motor delivers up to 1100 RPM, allowing for precise airflow tuning across diverse ductwork configurations. Built on a standard 48 NEMA frame size, it features a sleeve bearing design and a band mount housing for simplified drop-in installation. With a 6.8 Amp draw and clockwise (CW) rotation, this direct drive blower motor ensures consistent performance in critical ICP, Heil, and Tempstar HVAC systems. Techs should verify capacitor requirements (typically 10-15 MFD/370V) and lead wire lengths before arriving at the job site. This multi-speed HVAC motor provides a reliable OEM furnace motor replacement solution, maintaining optimal CFM delivery while adhering to strict electrical tolerances required for modern evaporator coil airflow management.
- Efficient Airflow Control: 4-speed taps allow for optimized CFM settings in heating and cooling modes.
- Universal 48 Frame: Standardized dimensions ensure compatibility with existing mounting brackets and blower wheels.
- Industrial Build: Permanent Split Capacitor (PSC) design offers high starting torque and thermal overload protection.
- Direct Replacement: Designed specifically for Heil Quaker and ICP equipment to eliminate field modifications.
Common Questions
What is the rotational direction of the 8079620?
This motor is lead-end clockwise (CW) rotation; always verify the blower wheel pitch before mounting to prevent airflow restriction.
Can I use this 3/4 HP motor to replace a 1/2 HP motor?
It is not recommended to oversize the horsepower as it may lead to higher amp draws and potential component failure; always match the nameplate HP and voltage.
Which mounting style does this motor use?
It utilizes a band mount (torsion flex) configuration, which is standard for many furnace and air handler blower assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
