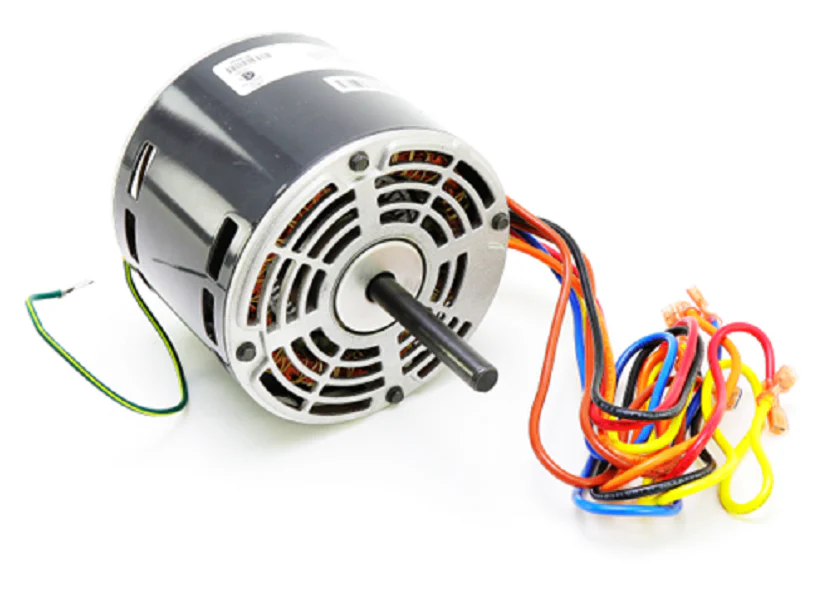

Heil Quaker ICP 8076624 Motor
When you are troubleshooting a failed air handler or furnace, the Heil Quaker ICP 8076624 Blower Motor is the direct OEM replacement engineered for precise compatibility with International Comfort Products equipment. This 1/4 HP blower motor operates on a 208-230V single-phase power supply, delivering a consistent 1100 RPM. As a 4-speed motor, it allows for fine-tuned airflow adjustments to match the static pressure requirements of the ductwork. Built on a 48 NEMA frame size, this Permanent Split Capacitor (PSC) motor features sleeve bearings and CW rotation (clockwise) for reliable performance in residential and light commercial HVAC systems. The band mount design ensures a secure fit within the blower housing, while the 3.9 Amp draw maintains electrical efficiency. Designed to replace aged or seized ICP 8076624 units, this motor restores original factory specifications to Heil, Tempstar, and Arcoaire systems, preventing the overheating and vibration issues often associated with generic "will-fit" alternatives.
Key Benefits- OEM Precision: Specifically designed to meet the exact torque and airflow curves of Heil Quaker and ICP air handlers.
- Multi-Speed Versatility: The 4-speed configuration provides installers with the flexibility to balance the system for optimal heating and cooling stages.
- Quiet Operation: Utilizes sleeve bearings for reduced acoustic resonance compared to standard ball-bearing motors in indoor applications.
- Standardized Fit: The 48-frame diameter and band mount setup ensure a drop-in replacement without the need for additional bracket modifications.
What capacitor is required for the 8076624 motor?
This 1/4 HP 1100 RPM motor typically requires a 5 MFD / 370V run capacitor. Always check the nameplate of the new motor for the exact rating, as using an undersized or oversized capacitor can lead to winding failure.
Does this motor include the mounting band?
This is a band mount blower motor. It is designed to slide into your existing motor mount bracket or a universal 48-frame mounting band.
Can I use this motor to replace a 1076624 or 8076622?
Yes, the 8076624 is a direct replacement for several older ICP part numbers including 1076624 and 8076622. Always verify the CW rotation and 208-230Vac requirements before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $381.55
-65%$381.55
$133.54Heil Quaker ICP 8076624 Motor
When you are troubleshooting a failed air handler or furnace, the Heil Quaker ICP 8076624 Blower Motor is the direct OEM replacement engineered for precise compatibility with International Comfort Products equipment. This 1/4 HP blower motor operates on a 208-230V single-phase power supply, delivering a consistent 1100 RPM. As a 4-speed motor, it allows for fine-tuned airflow adjustments to match the static pressure requirements of the ductwork. Built on a 48 NEMA frame size, this Permanent Split Capacitor (PSC) motor features sleeve bearings and CW rotation (clockwise) for reliable performance in residential and light commercial HVAC systems. The band mount design ensures a secure fit within the blower housing, while the 3.9 Amp draw maintains electrical efficiency. Designed to replace aged or seized ICP 8076624 units, this motor restores original factory specifications to Heil, Tempstar, and Arcoaire systems, preventing the overheating and vibration issues often associated with generic "will-fit" alternatives.
Key Benefits- OEM Precision: Specifically designed to meet the exact torque and airflow curves of Heil Quaker and ICP air handlers.
- Multi-Speed Versatility: The 4-speed configuration provides installers with the flexibility to balance the system for optimal heating and cooling stages.
- Quiet Operation: Utilizes sleeve bearings for reduced acoustic resonance compared to standard ball-bearing motors in indoor applications.
- Standardized Fit: The 48-frame diameter and band mount setup ensure a drop-in replacement without the need for additional bracket modifications.
What capacitor is required for the 8076624 motor?
This 1/4 HP 1100 RPM motor typically requires a 5 MFD / 370V run capacitor. Always check the nameplate of the new motor for the exact rating, as using an undersized or oversized capacitor can lead to winding failure.
Does this motor include the mounting band?
This is a band mount blower motor. It is designed to slide into your existing motor mount bracket or a universal 48-frame mounting band.
Can I use this motor to replace a 1076624 or 8076622?
Yes, the 8076624 is a direct replacement for several older ICP part numbers including 1076624 and 8076622. Always verify the CW rotation and 208-230Vac requirements before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
