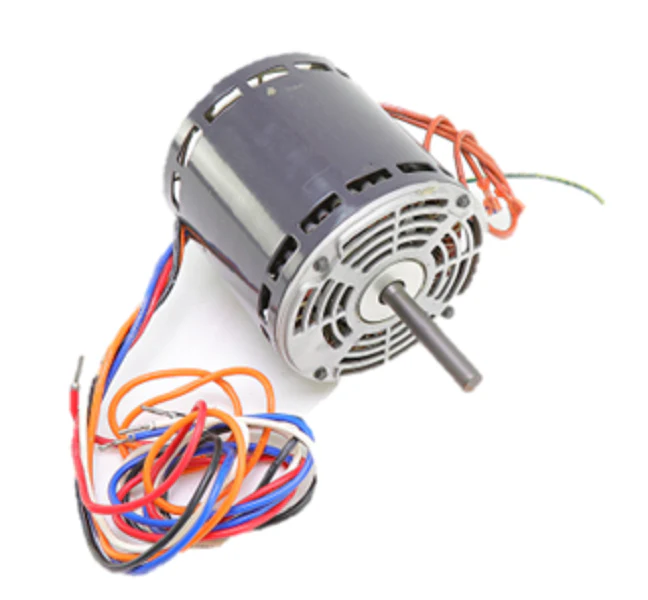

Heil Quaker ICP 8069620 Motor
Replace failing blower units with the Heil Quaker ICP 8069620 OEM Blower Motor, a reliable 3/4 HP furnace motor designed for 115V single-phase systems. This direct drive blower motor operates at a nominal 1000 RPM and features a 4-speed tap configuration, allowing for precise airflow adjustment across various heating and cooling stages. Built on a 48 NEMA frame size (specifically 48Y or 48YZ), this motor utilizes a permanent split capacitor (PSC) design, ensuring consistent torque and improved energy efficiency over standard induction models. The sleeve bearing system and CW rotation (clockwise lead end) provide quiet, continuous air-over duty performance in residential and light commercial air handlers.
For a successful field installation, professionals should verify the 14.9 Amp full load rating and ensure compatibility with a 10 MFD @ 370 VAC capacitor. The 1/2-inch by 3-inch single side flat shaft is engineered for secure band mounting, making it a versatile fast OEM HVAC part for brands like Tempstar, Comfortmaker, and Arcoaire. This motor serves as a direct technical replacement for legacy part numbers including 1069620, 8069640, and 8069695.
Key Benefits- 4-Speed Versatility: Multiple speed taps allow technicians to optimize CFM for specific static pressure requirements.
- OEM Fitment: Genuine ICP replacement motor ensures exact physical dimensions and electrical specs for 48-frame housings.
- Thermal Protection: Internal auto-reset thermal overload protects the windings during high-static or restricted airflow conditions.
- Durable Construction: Class A insulation and sleeve bearings designed for long-cycle reliability in 115Vac furnace applications.
What capacitor is required for the ICP 8069620?
This motor requires a 10 MFD / 370 VAC run capacitor. Using an incorrectly rated capacitor can lead to winding failure or increased amp draw.
Can I use this motor to replace a 1/2 HP unit?
Increasing horsepower is generally acceptable if the frame size and electrical ratings match, but always verify that the existing circuit and control board can handle the 14.9 Amp load.
How do I verify rotation for this blower?
The 8069620 is rated for CW rotation when viewed from the lead end (CWLE). Always check the blower wheel direction before securing the mounting band.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
