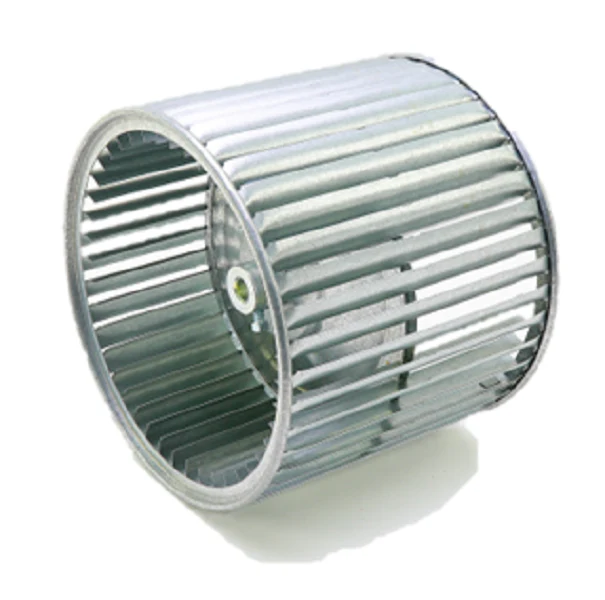

Heil Quaker ICP 703494 Blower Wheel
The Heil Quaker ICP 703494 Blower Wheel is a critical replacement component engineered for high-static performance in residential and light commercial HVAC systems. This 9x8x1/2 CCW CV blower wheel features a 9-inch diameter and 8-inch width, specifically designed with a 1/2-inch bore for precise integration with ICP furnace blower motors. As a counter-clockwise (CCW) rotation part with a concave (CV) hub position, it ensures optimal airflow velocity and static pressure maintenance across various International Comfort Products brands, including Tempstar, Comfortmaker, and Heil.
For technicians performing a furnace blower wheel replacement, building internal static pressure is dependent on blade integrity. The ICP 703494 utilizes a double-inlet centrifugal design with curved blades to minimize vibration and audible noise during high-speed operation. This OEM HVAC blower wheel is balanced at the factory to prevent premature bearing wear on the motor shaft, maintaining the performance standards of the original air handler assembly. When diagnosing airflow issues or physical blade deformation, verifying the 9-inch blower wheel diameter and rotation direction is essential for proper system calibration and efficiency.
Key Benefits
- Precision Balanced: Factory-aligned to reduce mechanical vibration and extend the service life of the blower motor.
- High airflow Efficiency: Engineered blade geometry optimizes cubic feet per minute (CFM) output in low and high-stage heating or cooling cycles.
- Durable Construction: Built to withstand the thermal stresses of heat exchanger operation without warping or loss of structural integrity.
- Exact OEM Fit: Drop-in replacement for Heil Quaker part 703494, eliminating the need for shaft modifications or housing adjustments.
Common Questions
How do I confirm the rotation of this blower wheel?
Rotation is determined by viewing the wheel from the hub side. This specific model is CCW (Counter-Clockwise). Installing a wheel with the incorrect rotation will result in significantly reduced airflow and potential motor overheating.
Will this fit other ICP brands like Tempstar or KeepRite?
Yes, as an ICP 703494 part, it is compatible across the International Comfort Products family, provided the part number matches the manufacturer's technical literature for your specific model.
What are the exact dimensions for clearance checks?
The wheel measures 9 inches in diameter and 8 inches in width, with a 1/2-inch bore. Ensure the blower housing has sufficient clearance for these nominal dimensions before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
