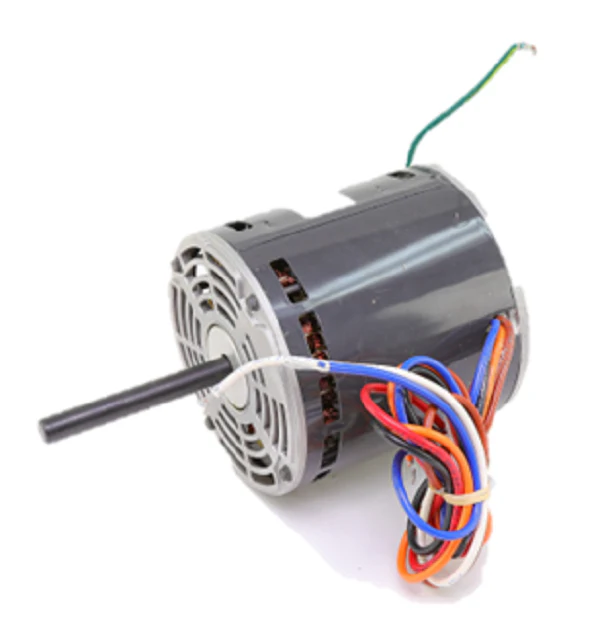

Heil Quaker ICP 613209 Motor
The Heil Quaker ICP 613209 Motor is a high-performance direct drive blower motor engineered for precision airflow in central heating and air conditioning units. As a veteran-grade HVAC replacement motor, this 3/4 HP unit operates at 115V and features a 48 NEMA frame size with a 1/2-inch diameter shaft. Designed as a permanent split capacitor motor (PSC), it utilizes a 10 MFD at 370 VAC run capacitor to maintain consistent torque and efficiency. With a 1050 RPM rating and 4-speed versatility, this motor allows for fine-tuned static pressure adjustments across various ICP furnace parts configurations. The sleeve bearing design and CCW rotation ensure quiet, reliable service in residential and light commercial air handlers. This OEM blower motor serves as a direct cross-reference for multiple legacy models, providing a seamless drop-in fit for Heil, Tempstar, and Comfortmaker equipment.
Key Benefits- Multi-Speed Flexibility: Features 4-speed taps to optimize airflow for both heating and cooling cycles.
- Direct OEM Compatibility: Engineered specifically for ICP (International Comfort Products) equipment, ensuring proper shaft length and mount alignment.
- High Torque Efficiency: The 3/4 HP PSC design delivers the necessary power to handle high-static ductwork without overheating.
- Durable Construction: Built with a 48-frame housing and sleeve bearings for long-term vibration dampening.
What are the symptoms of a failing blower motor?
Technicians typically look for a seized shaft, high amperage draw, or a "humming" sound indicating a failed start winding or run capacitor. If the motor is hot to the touch but not spinning, it may have tripped its internal thermal overload.
Does this motor include the run capacitor?
Standard OEM replacements generally require a separate 10 MFD / 370V capacitor. It is industry best practice to replace the capacitor whenever installing a new blower motor to ensure electrical timing remains within spec.
Can I use this to replace a lower horsepower motor?
While you can sometimes upsize horsepower if the frame size and physical dimensions match, you must verify that the existing fan wheel and circuit breaker can handle the 10-amp full-load draw of this 3/4 HP unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
