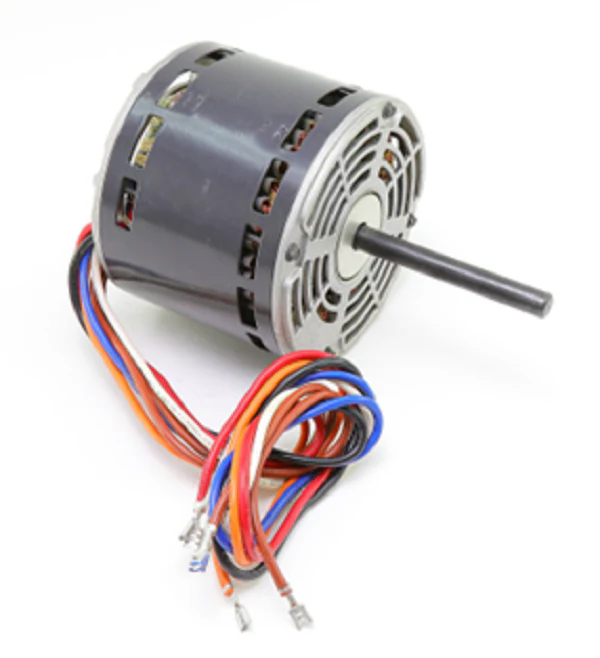

Heil Quaker ICP 613136 Motor
If you are looking to restore peak airflow in an older ICP or Heil Quaker unit, the Heil Quaker ICP 613136 Motor is the industry-standard 1/2 HP blower motor replacement. This 4-speed furnace motor operates at 115Vac and delivers a consistent 1050 RPM, making it a drop-in solution for 48 NEMA frame configurations. Designed as a Permanent Split Capacitor (PSC) motor, it requires a 7.5 MFD / 370V capacitor (sold separately) to maintain the high starting torque and energy efficiency required for modern indoor air handlers and furnaces.
Built for long-term reliability in demanding residential high-static environments, the ICP 613136 features a sleeve bearing design and a standard band mount setup. With an 8-amp draw and CCW rotation (lead end), this motor provides the multi-speed versatility needed to fine-tune CFM for both heating and cooling cycles. Whether you are servicing a Kenmore, Tempstar, or Comfortmaker system, this 115V blower motor ensures the mechanical compatibility required by veteran HVACR technicians to avoid field modifications.
Key Benefits:- Multi-Speed Flexibility: Features 4-speed taps to optimize airflow for varied heating and cooling load requirements.
- Durable PSC Design: Permanent Split Capacitor engineering offers superior reliability and lower operating costs compared to older shaded-pole motors.
- NEMA 48 Frame Compatibility: Standardized 5.6-inch diameter ensures a direct fit for most existing band-mount blower housings.
- Industrial Build Quality: Heavy-duty sleeve bearings and internal thermal protection prevent premature failure under high-cycle conditions.
- What is the correct rotation for the 613136 motor? This motor is designed for Counterclockwise (CCW) rotation from the lead end, standard for most ICP blower wheels.
- Can I use this to replace a single-speed motor? Yes, provided the frame size and voltage match; the 4-speed capability allows you to select the lead that best matches your system's original CFM output.
- What size capacitor does this motor require? This unit typically specifies a 7.5 MFD / 370V run capacitor for optimal electrical performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
