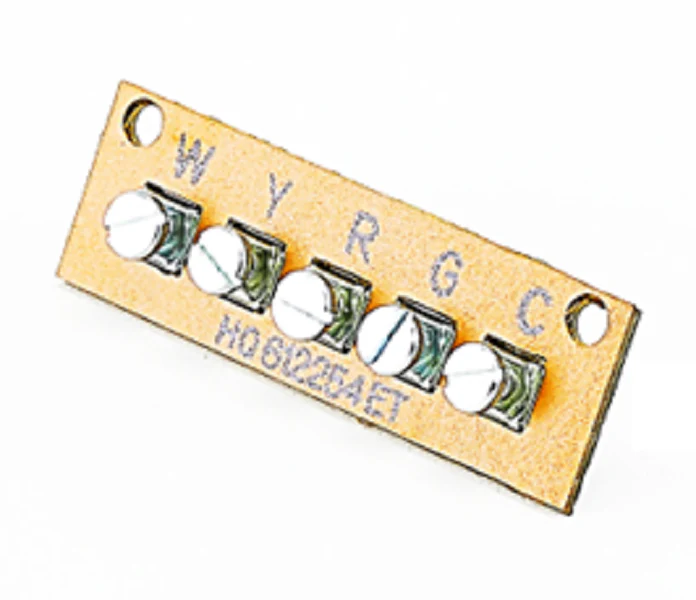

Heil Quaker ICP 612254 Terminal Board
The Heil Quaker ICP 612254 Terminal Board is a specialized 5-pole electrical distribution component designed for seamless integration within International Comfort Products (ICP) residential and commercial HVAC systems. This genuine OEM replacement part ensures precise low-voltage and high-voltage termination, maintaining the integrity of the control circuit and power supply to critical components. Engineered from high-dielectric, durable materials, the ICP 612254 terminal strip provides stable mounting points for multi-wire configurations, effectively preventing voltage drops and intermittent shorts often caused by corroded or cracked non-OEM boards. For technicians servicing Heil, Tempstar, or Comfortmaker units, this board is essential for restoring reliable communication between the thermostat, contactor, and blower assembly. The 5-pole terminal board layout matches factory wiring diagrams, facilitating a rapid drop-in installation that preserves original equipment manufacturer specifications. Its robust construction is built to withstand the vibrational stresses and thermal cycling common in condenser and air handler environments, ensuring long-term field reliability and electrical safety.
Key Benefits for Technicians:
- Direct OEM Compatibility: Specifically engineered for Heil Quaker and ICP families, ensuring the ICP 612254 matches factory mounting footprints and wiring offsets.
- 5-Pole Configuration: Provides dedicated termination points for standardized HVAC control logic, simplifying multi-stage or accessory wiring.
- High-Durability Construction: Resistant to carbon tracking and thermal degradation, preventing common board failures in high-amperage cooling applications.
- Simplified Troubleshooting: Clear terminal identification allows for faster diagnostic testing and voltage verification during preventative maintenance.
Common Questions:
Which HVAC brands use the 612254 terminal board?
This terminal board is utilized across several International Comfort Products brands, including Heil Quaker, Tempstar, Comfortmaker, Arcoaire, and KeepRite, primarily in air conditioning and furnace control sections.
How do I ensure a secure connection on this 5-pole terminal strip?
Always use appropriate spade or ring terminals and verify that the mounting screws are torqued to manufacturer specifications to prevent arcing and heat buildup at the connection points.
Can this board replace a 4-pole version?
It is recommended to replace like-for-like. While a 5-pole board offers an additional terminal, technicians must verify the underlying circuit paths and mounting clearances before attempting any cross-functional installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
