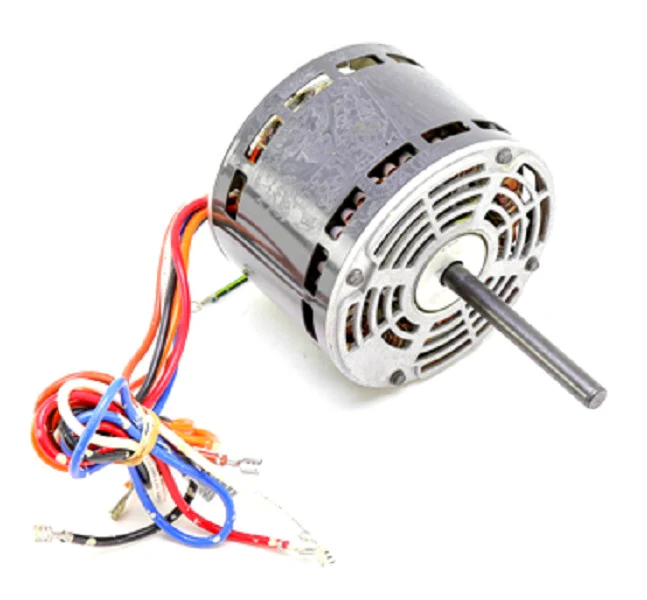

Heil Quaker ICP 611798 Motor
The Heil Quaker ICP 611798 Motor is a heavy-duty, OEM replacement blower motor designed specifically for high-efficiency climate control systems. Built with a 48 NEMA frame size, this 1/3 HP PSC motor operates at 115V and 1050 RPM, providing the consistent static pressure required for residential furnace and air handler applications. As a 4-speed furnace motor, it allows technicians to fine-tune airflow for heating and cooling stages, ensuring optimal CFM delivery across the heat exchanger. The counter-clockwise rotation (CCWLE) and sleeve bearing design offer quiet, low-vibration performance in direct-drive blower assemblies. Using a permanent split capacitor (PSC) design, this motor draws 7.2 Amps at full load, making it a reliable drop-in for ICP heating and cooling parts. This motor is commonly found in Heil, Tempstar, and Comfortmaker units, including specific models like the NDGE075PF02. For a secure fit, the housing is designed for standard band mount or belly band brackets.
Key Benefits- Multi-Speed Versatility: The 4-speed tap configuration allows for precise airflow adjustments to match system-specific heating and cooling requirements.
- Quiet Operation: Internal sleeve bearings reduce mechanical noise and vibration, essential for indoor air handler comfort.
- Standardized Mounting: The 48-frame diameter and band mount compatibility ensure a straightforward swap without extensive bracket modifications.
- Thermal Protection: Engineered to handle high internal temperatures, protecting the windings during long run cycles.
What is the correct capacitor for the ICP 611798?
Most variations of this 1/3 HP 115V blower motor require a 5 MFD / 370 VAC run capacitor. Always check the motor nameplate for the specific microfarad rating to avoid overheating.
Can I use this to replace a 3-speed motor?
Yes, this 4-speed motor can replace a 3-speed model as long as the voltage, 1/3 HP rating, and 1050 RPM match. Simply cap off the unused speed lead with a wire nut.
Does this motor include the mounting bracket?
This is a band mount motor, meaning it is designed to slide into your existing belly band or motor mount housing. Specific mounting hardware is typically reused from the original HVAC blower assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
