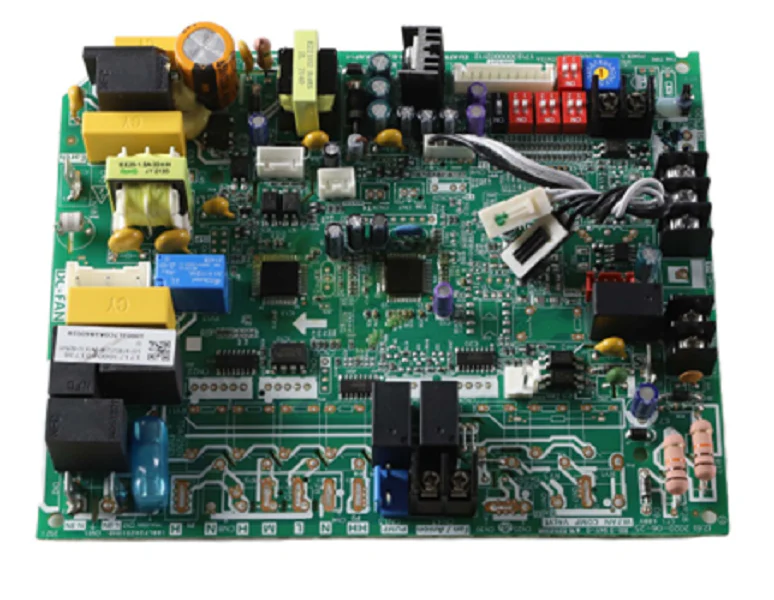

Heil Quaker ICP 17123000A01738 Control Board
The Heil Quaker ICP 17123000A01738 Control Board is a critical OEM replacement part designed for high-performance HVAC air handler systems. Engineered to serve as the primary logic center, this main control board manages essential cycles, including blower motor timing, fan speed regulation, and thermostat signal processing. As a direct-fit component for Carrier and ICP branded equipment, it ensures seamless communication between the indoor and outdoor units, maintaining the precise voltage path necessary for 24V control circuits and 120V relay operations.
Replacing a faulty or burnt control board with this genuine ICP 17123000A01738 model eliminates common integration failures such as E0 or E4 error codes related to EEPROM parameter errors. Built with a robust circuit board architecture, this unit features dedicated terminals for G, R, and C connections, as well as NC terminals for systems equipped with electric strip heating. For technicians, the 17123000A01738 offers a straightforward "drop-in" installation with standardized HVAC wiring layouts, reducing downtime and ensuring the system returns to its original design specifications for heating and cooling efficiency.
Key Benefits- Direct OEM Compatibility: Specifically engineered for Heil, Quaker, Carrier, and Midea manufactured air handlers, ensuring 100% pin-to-pin alignment.
- Enhanced Logic Processing: Features an onboard EEPROM chip to store critical system parameters and prevent service malfunctions.
- Standardized Troubleshooting: Clear terminal labeling simplifies multimeter testing of the blower relay and low-voltage signal paths.
- Industrial Build Quality: High-tolerance relays and soldering points prevent common pitted contact failure in high-cycle environments.
How do I diagnose a faulty 17123000A01738 control board?
Technicians should first verify 24V at the primary transformer and check the onboard fuse. If your system displays E0/E4 error codes or the blower motor fails to engage despite receiving a G-signal from the thermostat, the main control board is likely compromised.
Is this part compatible with multi-brand mini-split systems?
Yes, this Midea-manufactured board is widely used across several brands, including ACiQ and Carrier ductless and concealed duct systems. Always cross-reference the MPN 17123000A01738 on the existing housing before installation.
Can I use this for systems with electric heat strips?
The board includes an NC terminal specifically for 120V electric heating sequencers, allowing for proper blower delay sequences when the heating elements are energized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $175.45
-65%$175.45
$61.41Heil Quaker ICP 17123000A01738 Control Board
