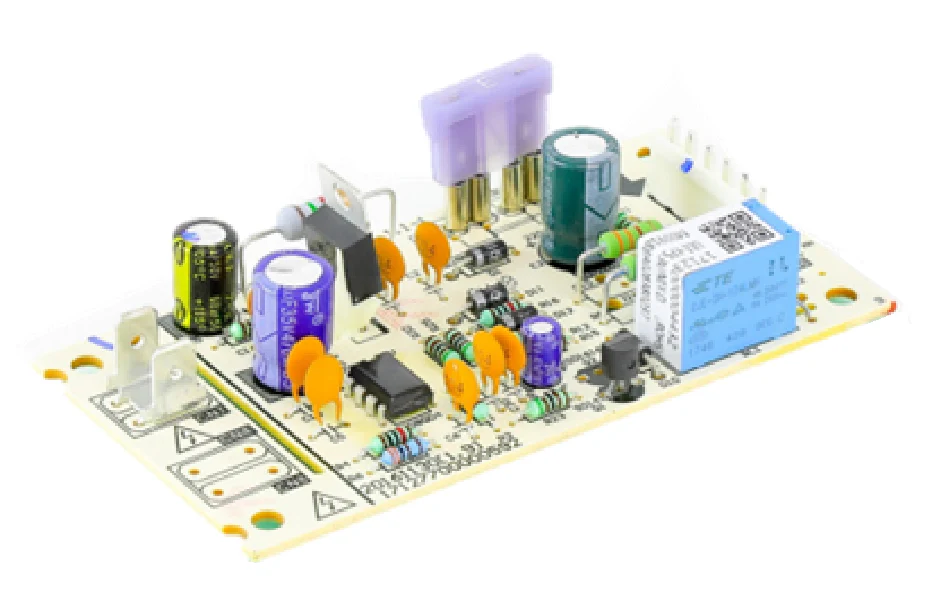

Heil Quaker ICP 17123000004432 Board
The Heil Quaker ICP 17123000004432 Time Delay Board is a critical OEM replacement part designed for International Comfort Products (ICP), Heil, Tempstar, and Comfortmaker HVAC systems. This time delay control board manages the precise sequencing of the blower motor and fan operation, ensuring the system reaches optimal temperature before airflow begins and continues to circulate conditioned air after the cycle ends. By regulating these timings, the 17123000004432 board prevents short cycling, reduces inrush current during startup, and protects the compressor from premature wear. Built specifically for HVAC timing control, this integrated circuit board replaces legacy numbers 17123000000469 and 201370290046. Its rugged OEM construction ensures a direct-drop fit, maintaining the energy efficiency and professional-grade performance expected in residential and light commercial air handlers and furnaces.
Key Benefits:- OEM Compatibility: Exact replacement for Heil Quaker and ICP units, ensuring seamless integration with existing 24V control circuits.
- System Protection: Actively prevents rapid cycling of the compressor, extending the service life of major mechanical components.
- Enhanced Efficiency: Optimizes blower fan delay-on and delay-off timings to maximize heat transfer and reduce wasted energy.
- Direct Fit: Designed for straightforward installation with standard terminal markings, reducing contractor labor time on-site.
- Reduced Startup Load: Manages current flow to prevent electrical surges that can trip breakers or damage sensitive HVAC electronics.
What are the signs of a failing time delay board?
Common symptoms include the blower motor failing to turn on after the thermostat calls for heat or cool, the fan running continuously, or the system short cycling. If the board shows visible burn marks or the LED diagnostics are inactive, a replacement is typically required.
Can this board replace other part numbers?
Yes, the 17123000004432 is the authorized successor to part numbers 17123000000469 and 201370290046. Always verify your specific Heil or ICP model number before installation.
Why is the time delay function necessary?
Timing delays ensure the heat exchanger or evaporator coil reaches the set temperature before the fan moves air. This prevents "cold blows" in winter and ensures all residual cooling/heating is utilized at the end of a cycle, improving SEER ratings and comfort.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
